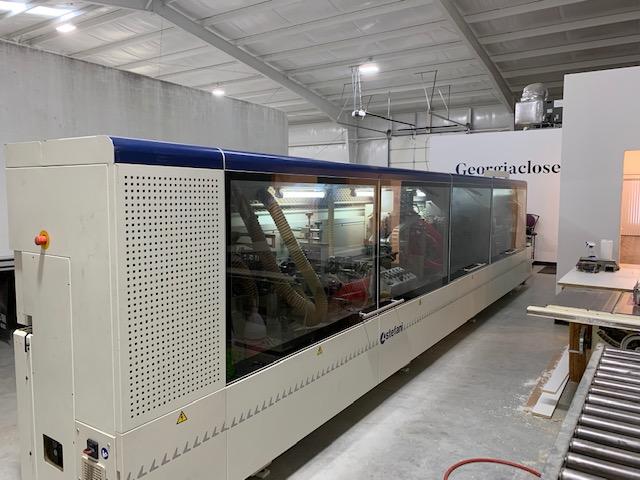

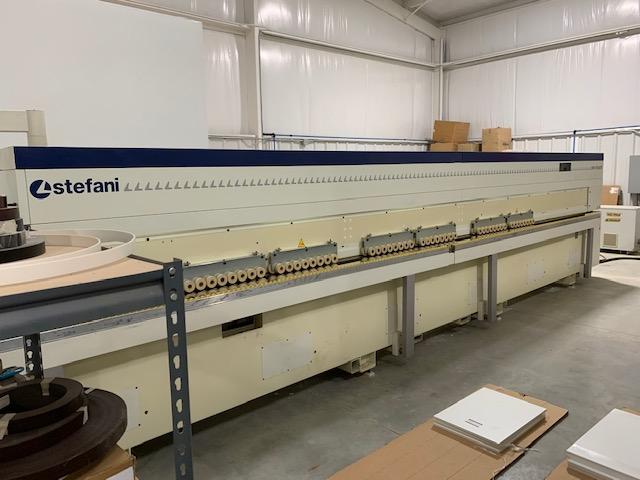

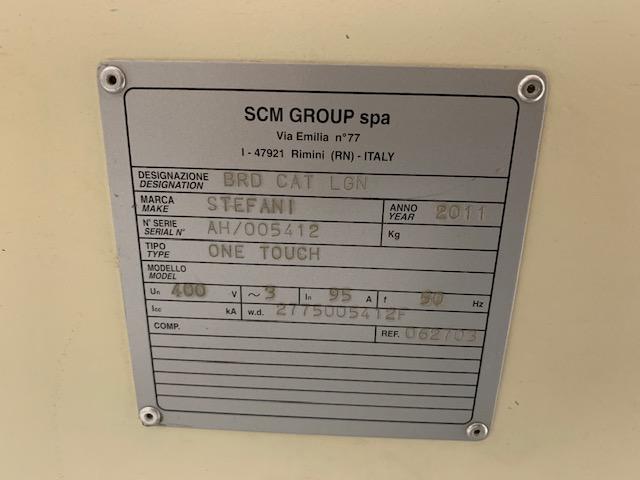

SOLD SCM Stefani One Touch Edgebander
Year; 2011
Still in production and can be demonstrated. Very clean and well maintained by SCM factory technicians.
TECHNICAL DATA

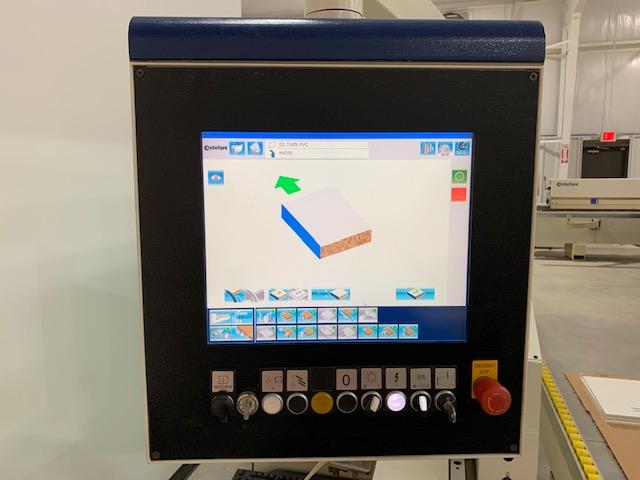

Operating System "WinEdge" interface
PC Office Operating system: W XP
Screen: 17" TFT
Variable speed feed: 10-30 m/min
Working speed 30 m/min
Coil Material:
Melamine .4 mm
PVC and ABS 3 mm
Min. length coil material 125 mm
Pre-Cut Strip:
Laminate/veneer thin strips thickness max: 1mm
Solid wood thickness: 20mm
Panel size with coil stock
min./max. length without rounding unit: 125-3200
min./max. length with rounding unit: 140-3200 mm
min./max. width: 95 – 1200 mm
Panel size with strips
min./max. length: 210 – 3200 mm
min./max. width: 125 – 1200 mm

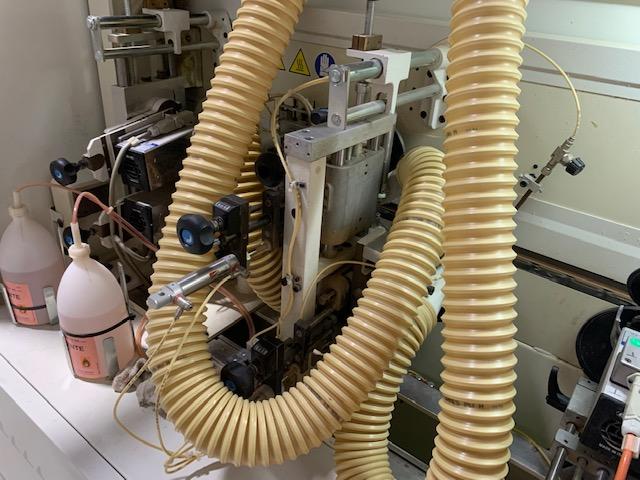

SPRAY ANTI-ADHESION UNIT
Prevents glue from sticking on the top and bottom surface of the panel
PANEL HEATING LAMPS
PRE-MILLING UNIT
Motor power 4+4 KW
• Exhaust hood with optimized chip suction
• Timed cleaning
• Inverter

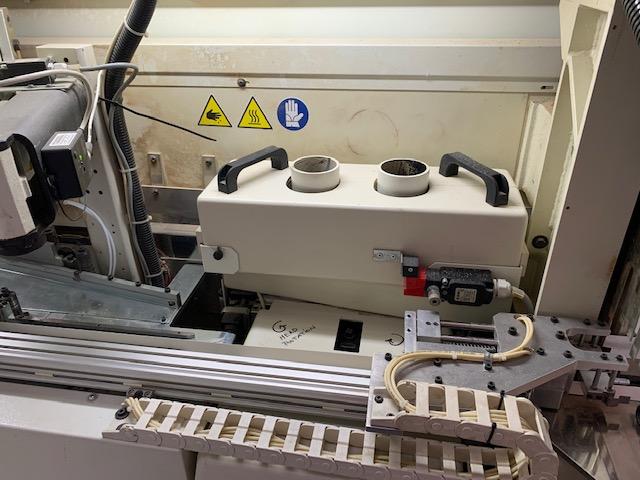

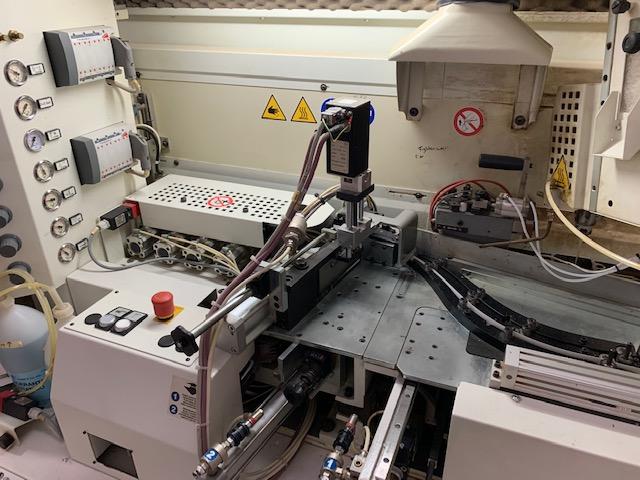

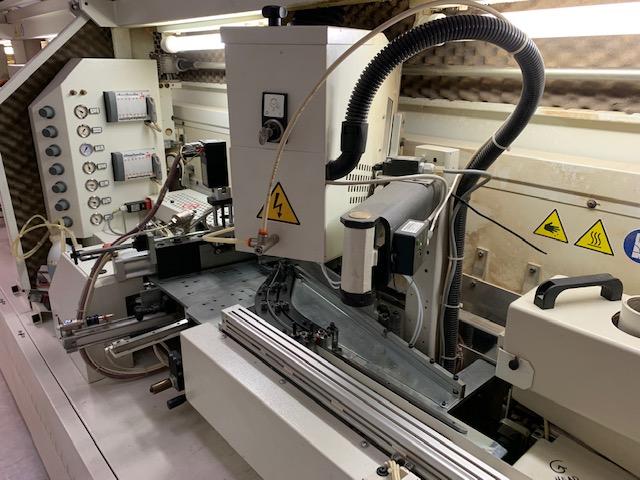

GLUING UNIT
• Quick melt system
•Coated glue pot for easy cleaning
• Quick Change glue pot
• Glue thickness control
• Glue temperature control on glue pot and on the quick melt system
• Guillotine cutter for coiled edgebanding
• “OPTI-CUT” system for the optimized management of edgebanding
• Automatic shut-off of the glue pot
Strip storage capacity 200 mm
Glue pot capacity 2.6 lbs
Edge height 12-65 mm
Glue melting capacity with pre-melting system 17.6 lbs/h
END TRIMMING UNIT
Trim edge from of the panel
• Automatic cut-off for solid wood max. 22 mm thickness
• Automatic blade tilt up to 22°
Speed 12,000 RPM
Motors .3KW

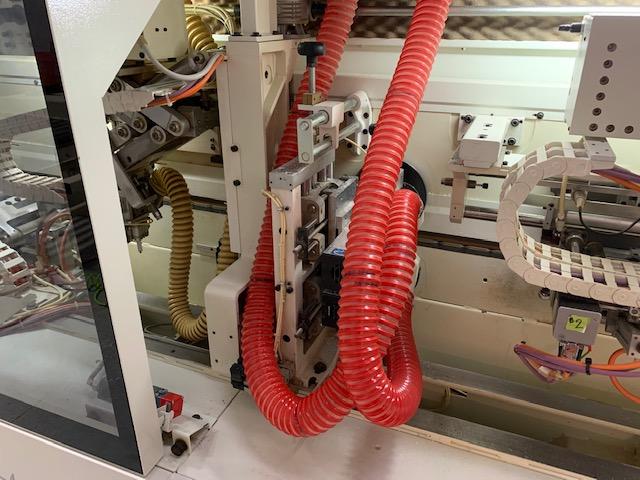

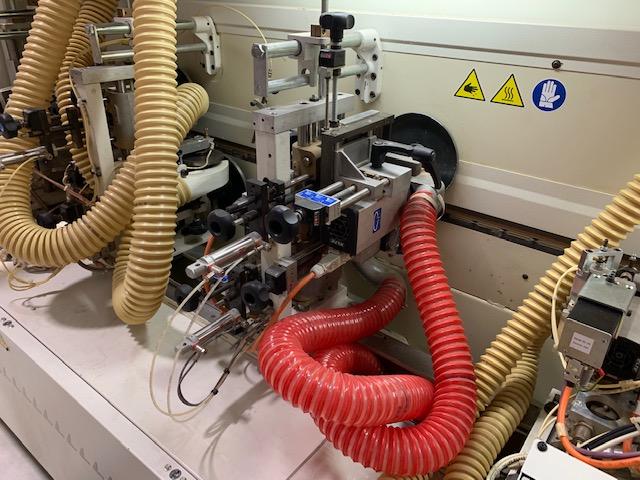

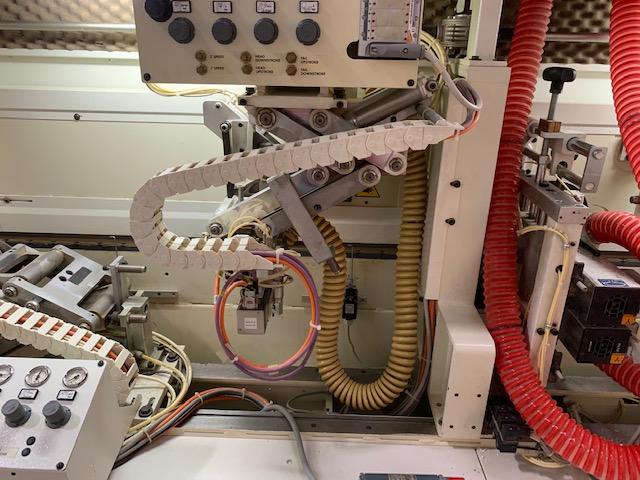

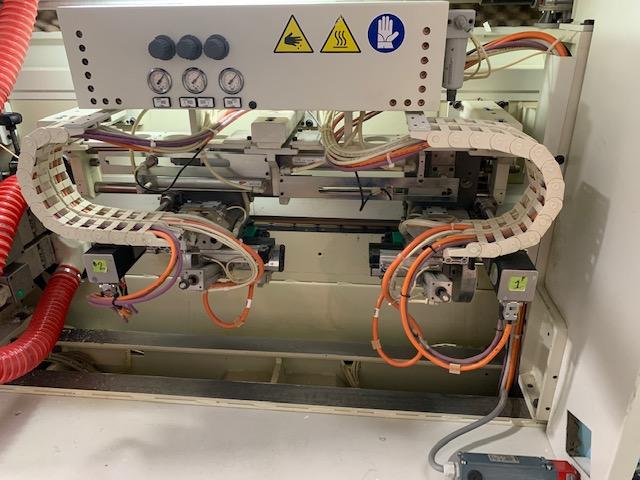

TRIMMING UNIT
• Two motors provided with quick release
• Large diameter disk-shaped vertical copy wheels
• Digital indicators for the horizontal and vertical position of the motors
• Automatic shut off
• Exhaust hood
Motors 1 KW
DIAMOND TOOLED “ED-SYSTEM" CORNER ROUNDING UNIT ROUND
Trimming and corner rounding on straight panels
• Copying system
• Horizontal motor movement with numerical positioning
Speed 12000 RPM
Motor power .3 KW
Second set of top & bottom flush trim station two .55kw motors tiltable 0-15 degrees
EDGE SCRAPING UNIT
For the finishing of radiated PVC/ABS edge:
• Quick- release tool holder
• Vertical and horizontal shifting on linear guides
• Vertical and horizontal copy wheels
GLUE SCRAPING UNIT
• Completed with two cutter-tools of Widia
• Vertical copiers
• Two blowers to clean cutters
• Pneumatic start and stop
BUFFING UNIT
• Two tiltable motors
Technical data:
Speed 1500 RPM
Max. horizontal tilt 5°
