Description
If no preowned cnc routers/machining centers are currently listed for sale, call Stan the Woodworking Machinery Man at 770-861-0570 to check availability of incoming inventory, as our used machinery frequently sells before being listed.
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

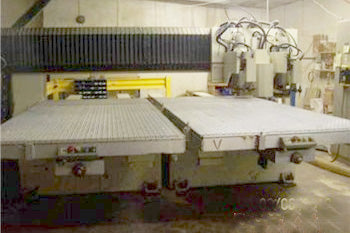

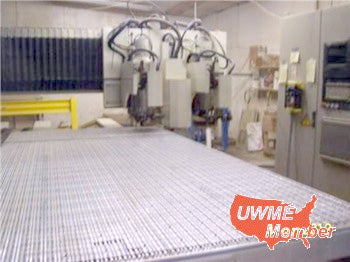

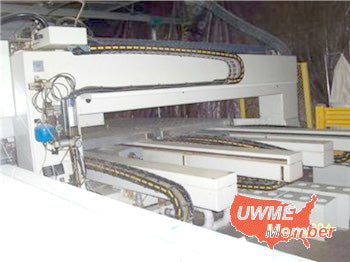

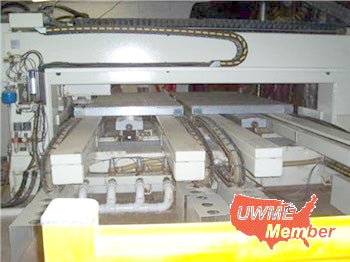

SOLD - Used SCM Twin Table CNC Router – Model Routech R-250
List Price: $59 950.00
Condition: ATFS
Machine Stock Number: L-1-227
Member Stock Number: RC160007542
Description: Used SCM - Routech R-250 CNC Router Price includes take down packing loading onto truck.
- 2 work tables measuring 61.5" by 125" with 4.5" gap in between tables
- 10' parts can run left to right or front to back
- Feed speeds accelerate at 2300 inches per minute
- No manual lubrication needed throughout the lifetime of the machine
- One 25HP Quincy Rotary Screw Vacuum Pump

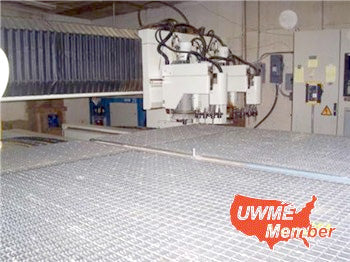

- Head #1: 10HP 900 to 18 000 RPM ISO 30 "Quick Change" Router Spindle
Automatic Tool changing System
- (ATD) with 10-tool computer
- Num Model 1060 Color Graphic Multi-Axis CNC Control
- 10HP motors with 250% overload capacity
- 14" color graphic monitor allows components to be viewed at main screen.
- Handheld control pendant
- Download programs using either an RS232 port or a 3.5" floppy disk
- AC Digital (brushless) servo motors
- Dust Extraction system with CNC controlled extraction hood (into 4 different positions)
- 208/230/460 Volts 3-Phase
Axis Stroke:
• X-axis: 3 700mm (145.6")
• Y-axis: 1 600mm (62.9")
• Z-axis: 300mm
