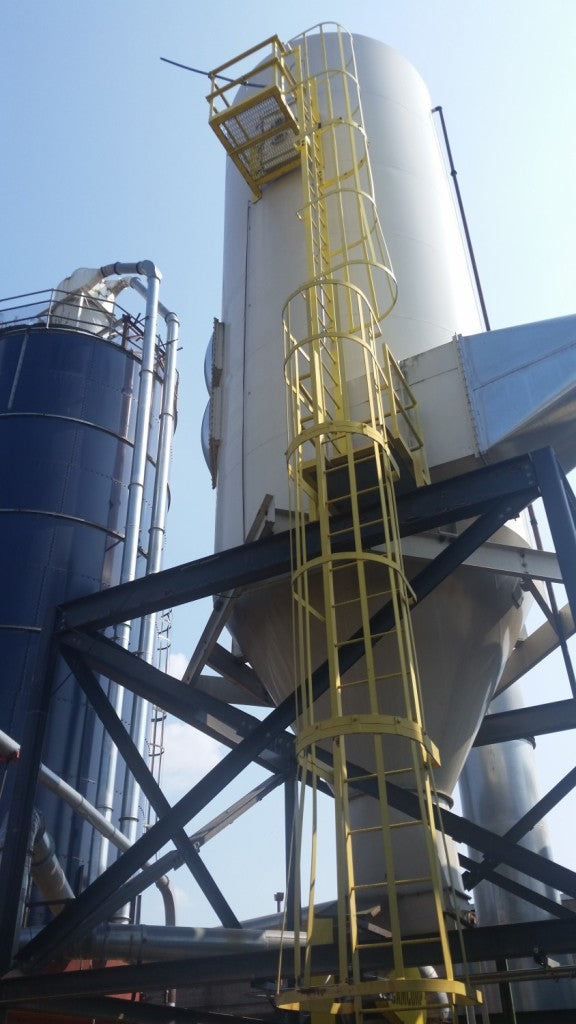

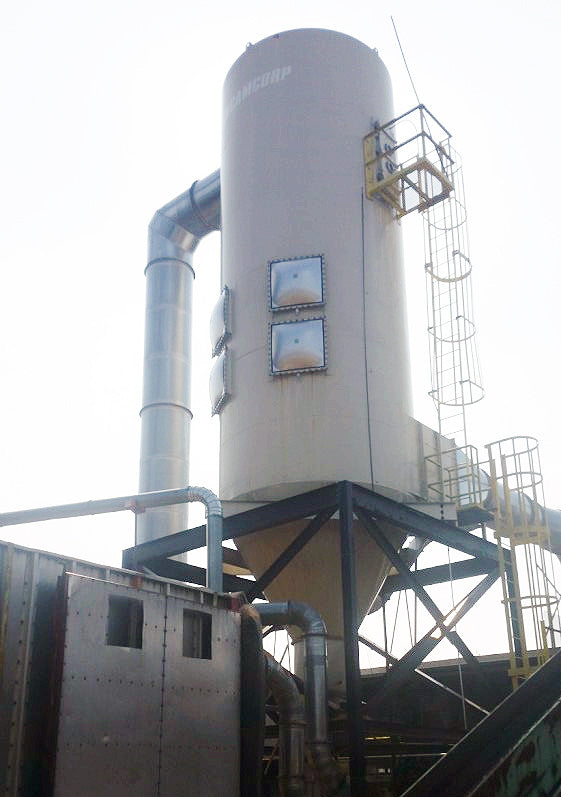

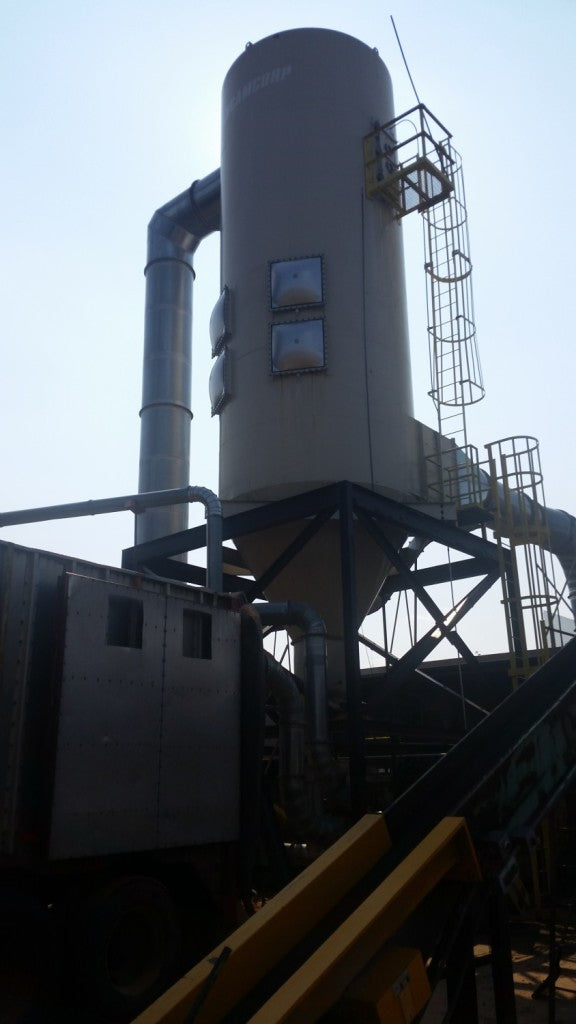

SOLD Used Camcorp 40 000CFM Dust Collector
This used dust collector manufactured by Camcorp features a 125 HP Main Blower
Technical Specifications:
- Air to Media Ratio: 7.5 to 1
-
Negative pressure system
Motor List:
- Main Blower 125 HP
- Transfer Blower Package: 7.5HP
- 3/60/230-460V
- Sweep Arm Drive Motor: 1/2HP 3/60/230-460V
-
EXP Proof. Airlock Motor: 3HP 3/60/230-460V 36"
-
Inlet diameter. 44.125 diameter pipe from filter to fan
- (368) 4-1/2" dia x 144" LG 16oz Felt Polyester filter bags with ground wire providing a total filter area of 5 342 SQ. FT.
- (368) Heavy Duty #11 GA. Galvanized C.S. (10) Wire filter bag cages.
- Medium-pressure reverse air cleaning system consisting of: - Positive displacement blower package (field located). - Reverse air sweep arm. (1/2 HP). - Right angle gear reducer approx 1-1/2 RPM final Output. - Medium pressure air accumulator tank. - Solid state sequential timer mounted in a NEMA 4 enclosure 110 V power required.
- Clear air plenum with hinged clamped access door.
- Differential pressure gauge kit consisting of: - Dwyer magnahelic gauge. - Mounting bracket. - 100 ft. 1/2" dia. nylon tubing and necessary fittings.
- Est Assembly weight: 18 570 lbs.
