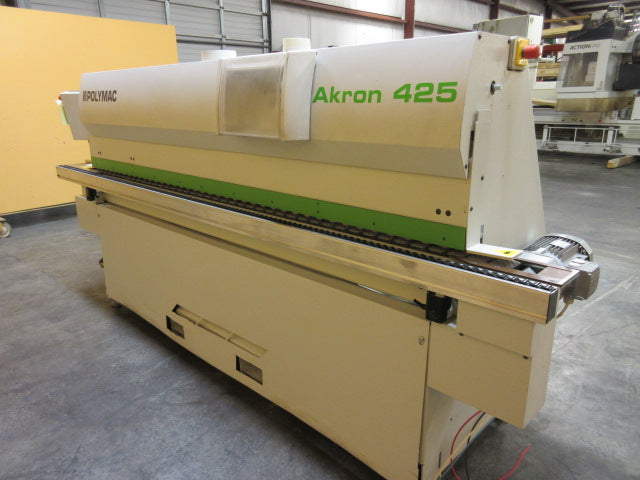

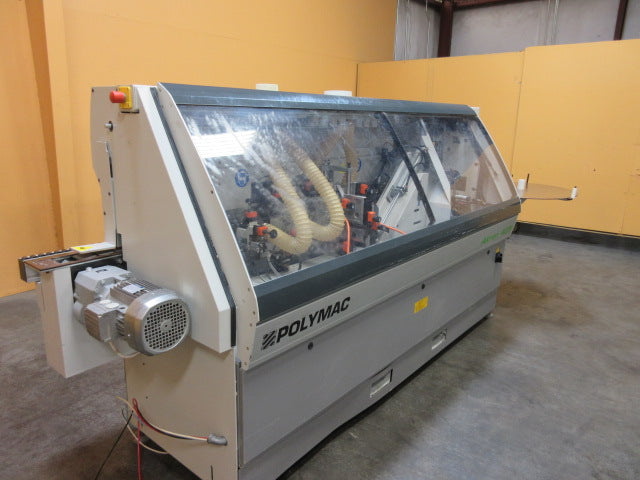

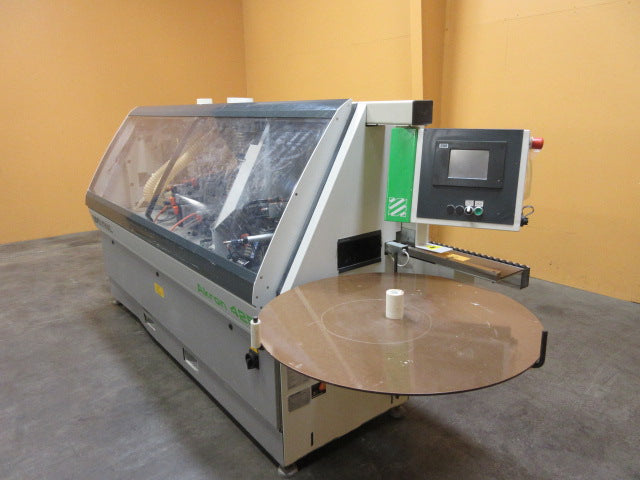

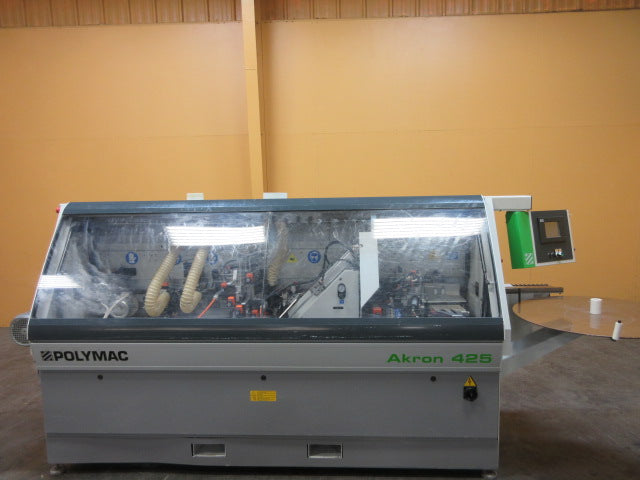

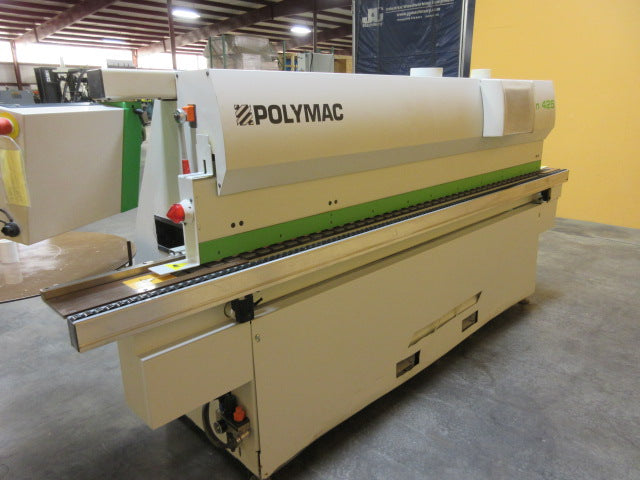

SOLD Used Biesse Edgebander - Model Akron 425 AN

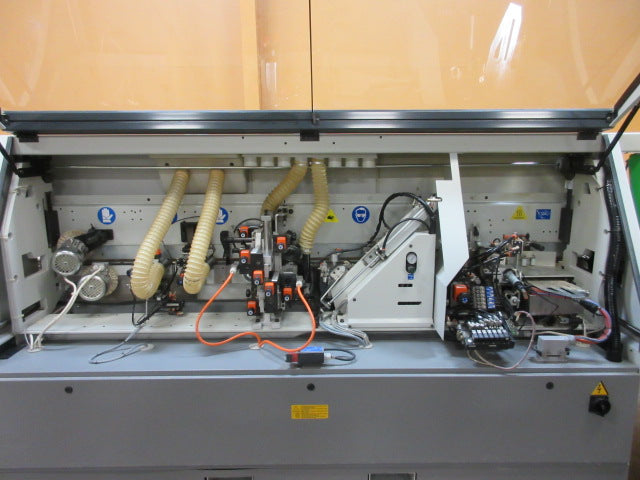

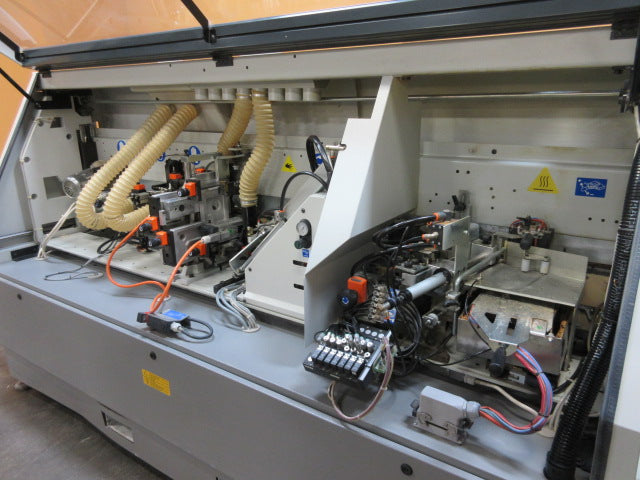

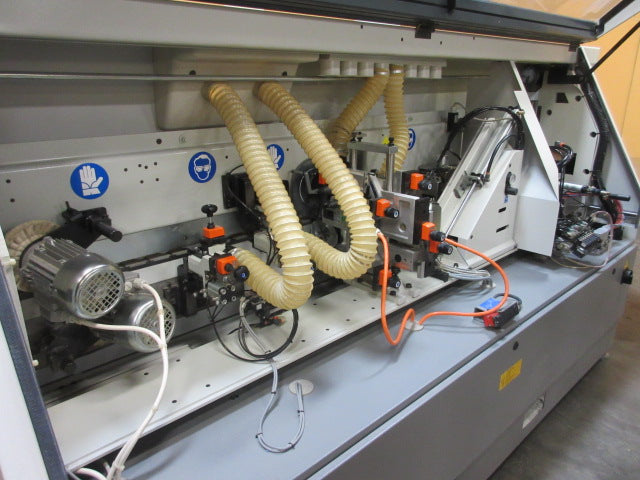

This used edgebander. manufactured by Biesse features top and bottom buffing. Additional technical specifications include...
- .4 to 3mm edge banding thickness in coils
- 4 to 8mm (5/16") edge banding thickness in strips
- Panel thickness 10 to 60 mm
- Min. panel length 5.5"
- Min. panel width 3.35" with length 5.51"
- Min. panel width 2" with length 9.84" 6"

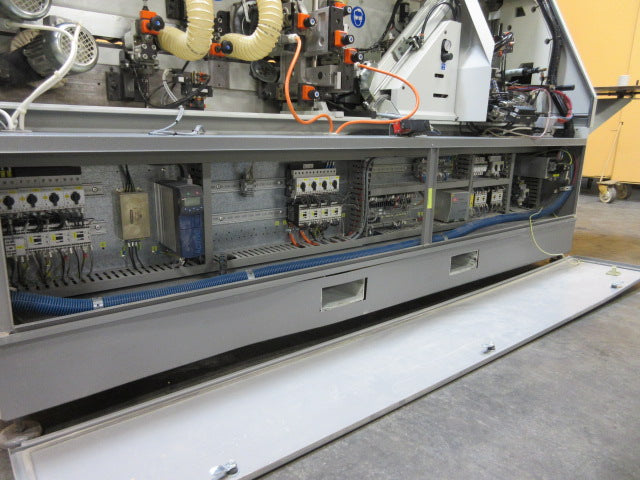

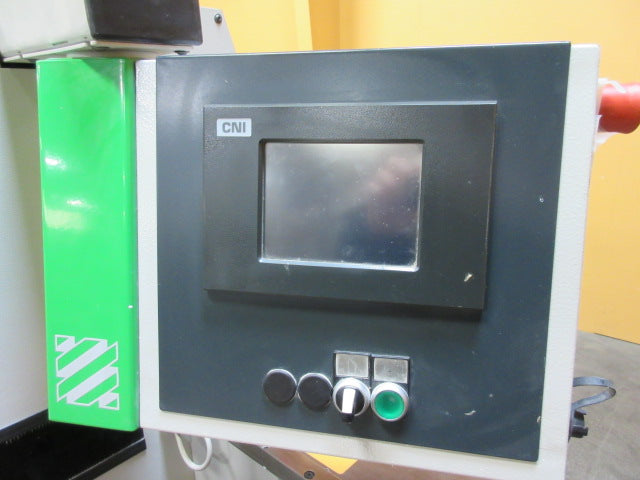

- touch screen numeric control switch board
- Manual top pressure beam positioning with numerical digital readout

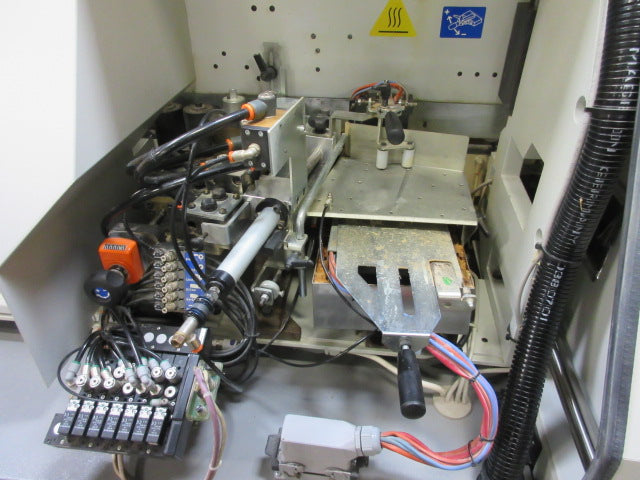

- Automatic loader for coiled edge banding and automatic feed magazine for strips
-
Heavy duty guillotine for 3mm Teflon coated glue reservoir with approximately 12 minute heat up time and dual thermostats
-
Pressure section consists of (1) large driven roller and (2) idle rollers all pneumatically controlled
- (2).67 HP end trims on prismatic guides with pneumatic tilt

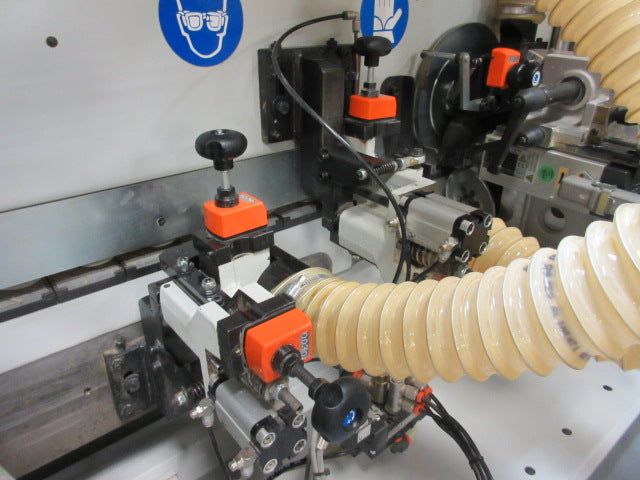

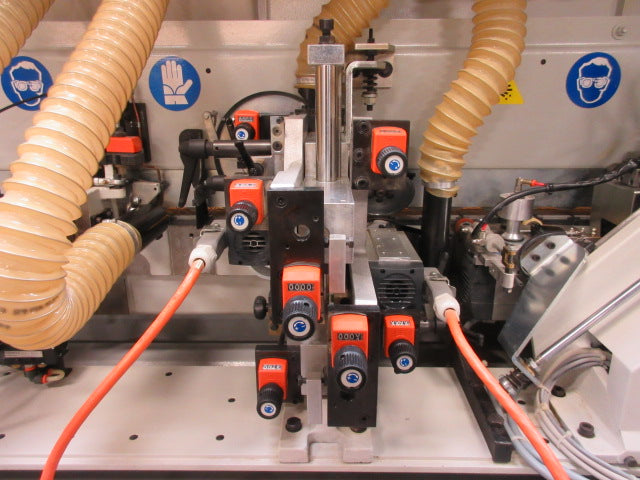

- (2).87 HP top and bottom tilting trims with combination cutterhead for bevel

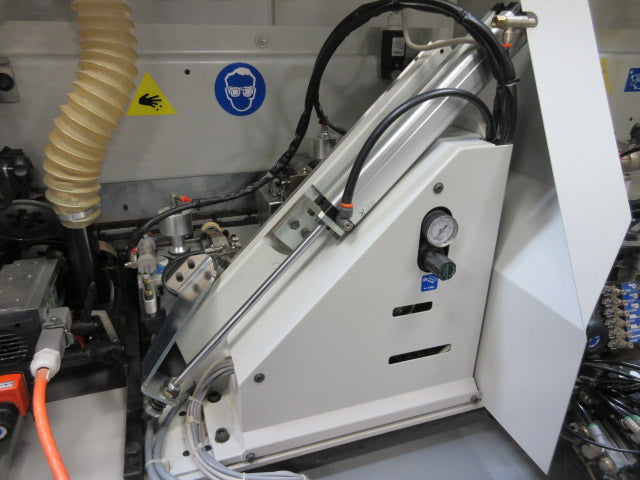

- 3mm Profile scraping section for 3 mm PVC with pneumatic exclusion
- Edge scraper shavings collection box

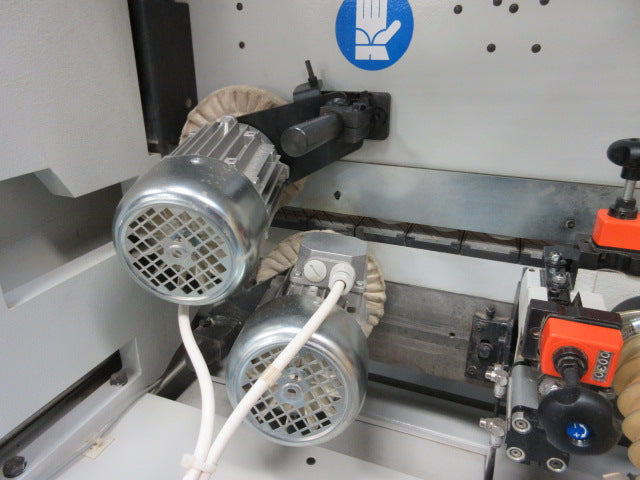

- Top and bottom buffing
- Single speed feed speed - 42 FPM
- All high frequency motors powered by a varispeed inverter

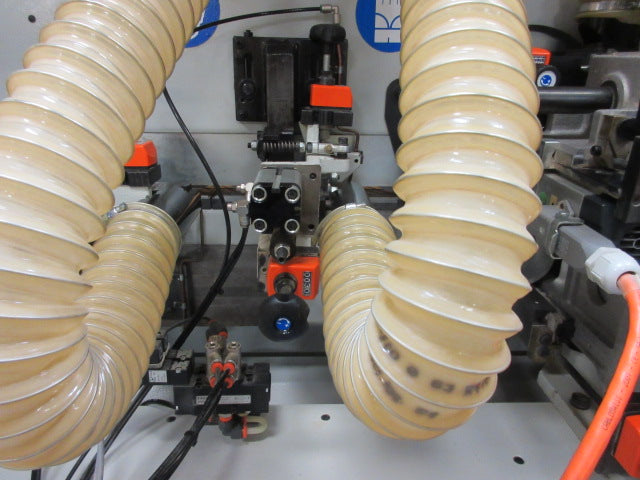

- Centralized dust extraction with (1) 150mm diameter dust outlet
- (1) 100 mm diameter dust outlet for edge scraper unit
- Machine weight: 2 645 lbs.
- Machine dimensions: 145" L x 40" W x 60" H
