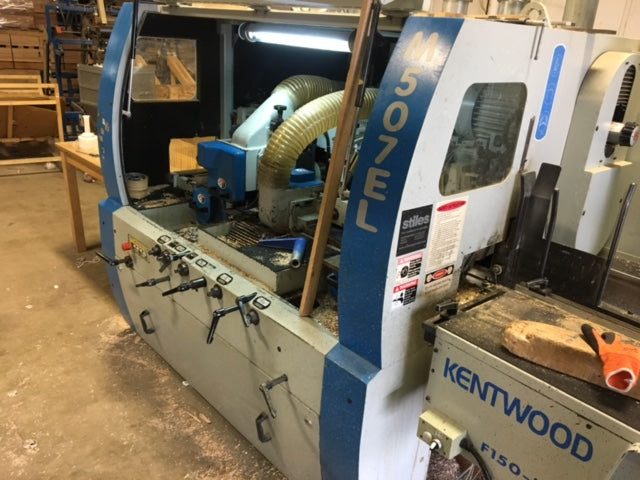

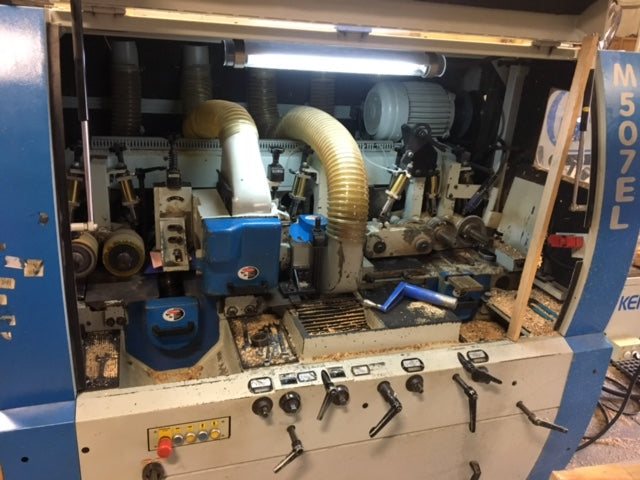

SOLD - Used Kentwood Model M-507EL Five Head Feed Thru Moulder
Year: 2008
Serial Number: 0809015
This used five head feed thru moulder was manufactured by Kentwood and it features a working capacity of 5" thick x 7" wide. Includes all manuals and equipment. It is also equipped with ...
- a 7.5 HP motor belted to the first bottom spindle
- a second right spindle
- a third left spindle with a 10 HP belted motor shared
- a fourth top spindle with a 10 HP belted motor
- a fifth bottom spindle with a 10 HP belted motor
Additional Technical Specifications:
- all spindles with electro/mechanical brakes
- 4 HP variable speed feed motor delivering feed rates from 20 to 80 F.P.M
- chainless through-feed feed system with Cardan shaft drive to the feedworks
- 1 HP feed beam power raising and lowering motor
- electrical controls wired for AC 3/60/230 volt operation
Spindle Specifications
- all spindles are 1-1/2" diameter with cutterhead speed of 6 000 R.P.M
-
all spindles adjustments except first bottom head with mechanical digital readout
- left and top spindles with digiset mechanical readouts
- spring-loaded receding chipbreaker (dual segment) for top spindle and a spring-loaded pressure shoe after the top spindle (single segment)
- mechanical digital readout for chipbreaker and pressure element
- seven top pressure rollers and two bed rollers
- side pressure roller at infeed mounted to the infeed table
- 2M 6 foot 6 inch long infeed straightening table with up to 3/8" adjustment
- manual table lubricant pump
- central lubrication system
- chromed table plates and fences; with a short stock feeder opposite fence vertical side
- Model F150-HSP Hydraulic Random Length Hopper Feeder with a capacity of 10" to 256" in lumber length
- full sound and safety enclosure manuals and all related equipment.
