Description

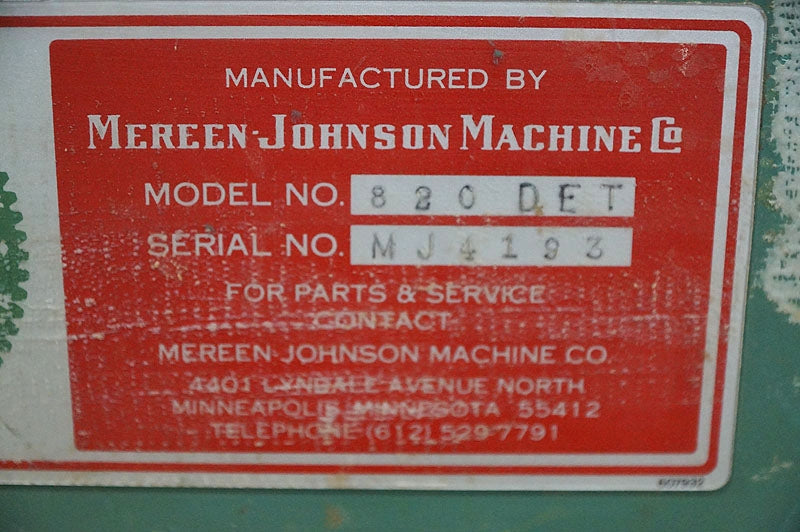

SOLD - Used Mereen-Johnson Double Tenonor - Model 820
Year: 1990
This used manufactured by Mereen-Johnson features 98" max. working width.
Technical Specifications:
- Station #1: (right & left hand) adjustable height tilting trim saw heads
- 7.5HP•230/460V
-
3PH
- Station #2: (right & left Hand) high speed cope heads
- 15HP
- 230/460V
-
3PH
- Includes Part list BOM wiring diagram and layout diagram
- 460V
- 3Ph
- 60Hz
- 100 Amp
- Weight: 13 000 lbs.
- Max. working width: 98"
- 1-1/2" wide rubber padded table feed chains
- Chain dogs mounted every 12-5/8"
- 39" table passline height
- 48" infeed load space
- Rubber padded adjustable top pressure beams
- Left hand infeed adjustable fence
- Belt drive spindle arbors
- 1-3/4" dia. spindles with 5" under the nut capacity
- 3HP
- 230/460V
- 3PH Feedworks drive motor
- Variable speed drive system
- Front-mounted push button operator machine controls
- Center stock support table
