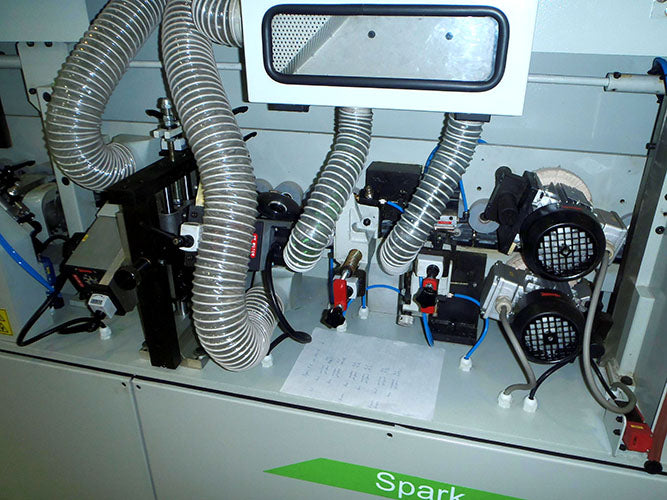

SOLD Used Biesse Edgebander - Model Spark 5.8
This used edgebander manufactured by Biesse features 2 feed speeds 39-53 ft/min / 12-16 m/min.
Technical Specifications:
- Pre-Milling Unit- To rectify the edge of the panel
-
2 HF motors - 12.000 rpm – 2.5 hp (1.8 kW) each and separate time entrance:
Edge Trimming Unit - To carry out the trimming of edge excess at the front and rear portion of the panel with 2 tilting motors HF 0.5 hp (0.37 kW).- 1st motor spinning anti-clockwise;
-
2nd motor spinning clockwise
- Top and Bottom Trimming Unit - To carry out top and bottom fine trimming of the edge with 2 motors HF 1 HP (.75 kW).
- Micrometric adjustment with numerical readout.
- Scrapping Unit - To scrape the edge of the tape using knife scraping
- Micrometric adjustment with digital readout.
- Brushing Unit - To carry out the cleaning and polishing of the applied edge using cloth disc brushes with 2 motors 0.25 hp (0.18 kW) with cloth discs dia. 3.8" - 100 mm. •1 suction hood dia. 2" / 50 mm
- 1 suction hood dia. 3.9" / 100 mm
- Separate box to collect ABS chips •Installed Power: 12 KW
- Weight: 3550 lb / 1610 Kg •Multi-Tap Transformer
- Electrics: 220V 480V 575V 3 Phase 60Hz.
- Dimensions: 173" x 67" x 75" / 4400 x 1700 x 1900
- CE standards •Min width of the panel 3.2" / 80 mm
- Min length of the panel 11.8" / 300 mm
- Max thickness of the panel 1.8" / 45 mm
- Min thickness of the panel 0.39" / 10 mm
- Edge dimensions in rolls ABS 0.02" - 0.12" / 0.4 - 3 mm
- Edge dimensions in strips 0.02 - 0.32" / 0.4 - 8 mm
- 2 Feed speeds 39-53 ft/min / 12-16 m/min
- Air pressure 6 bar
