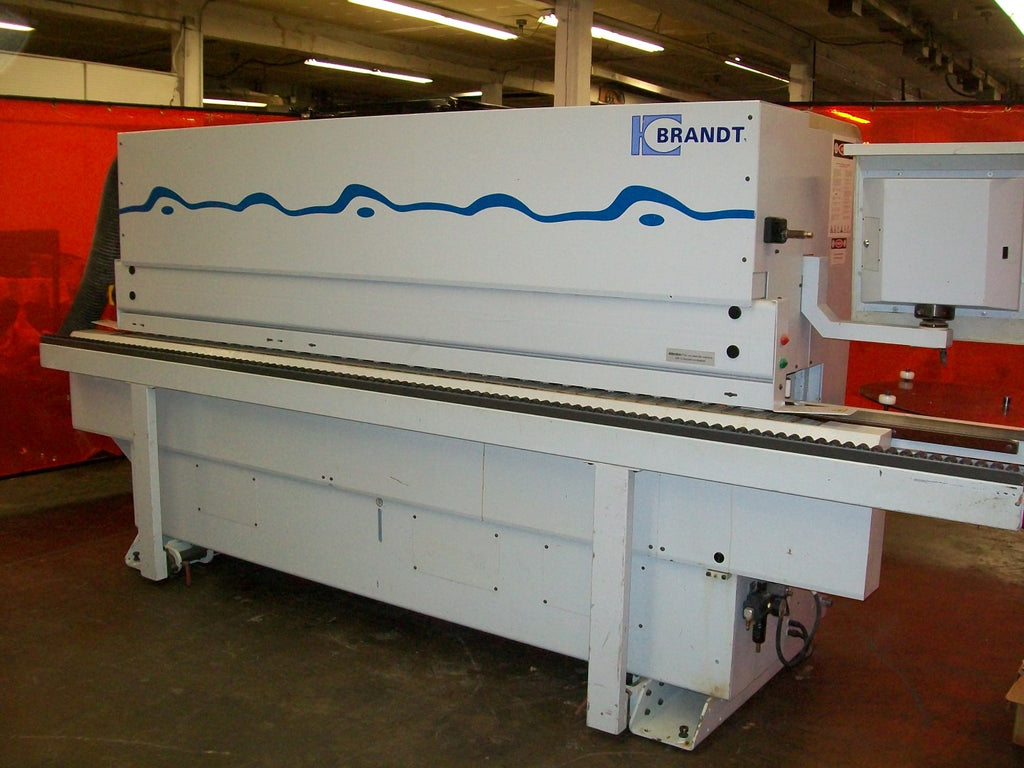

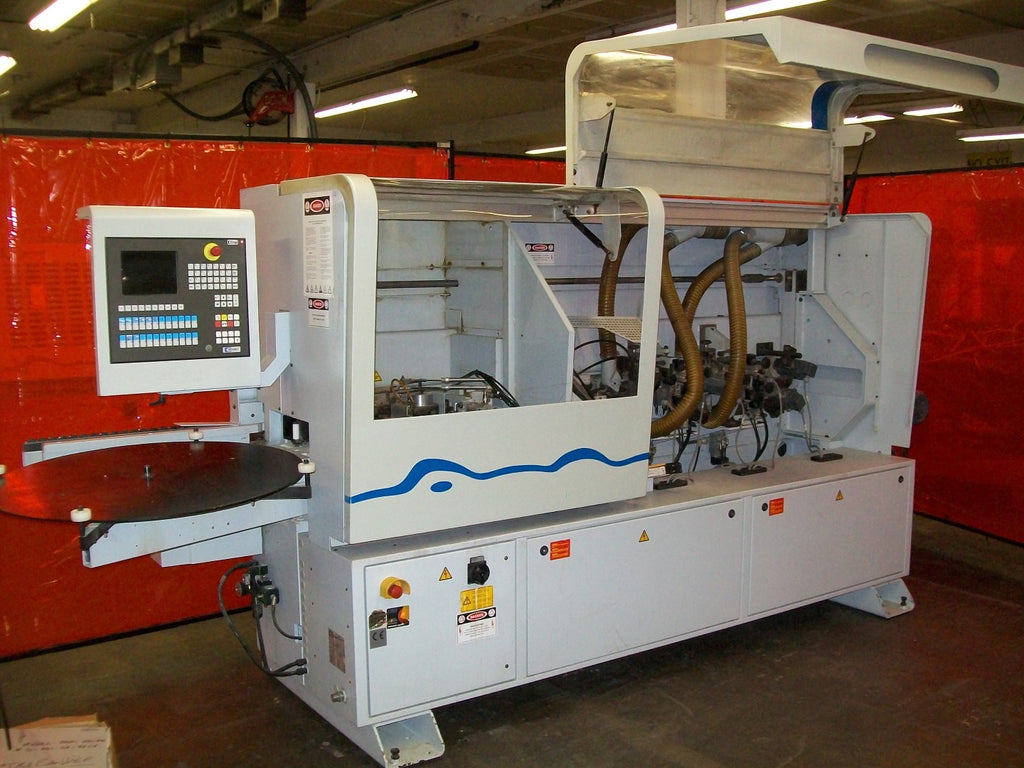

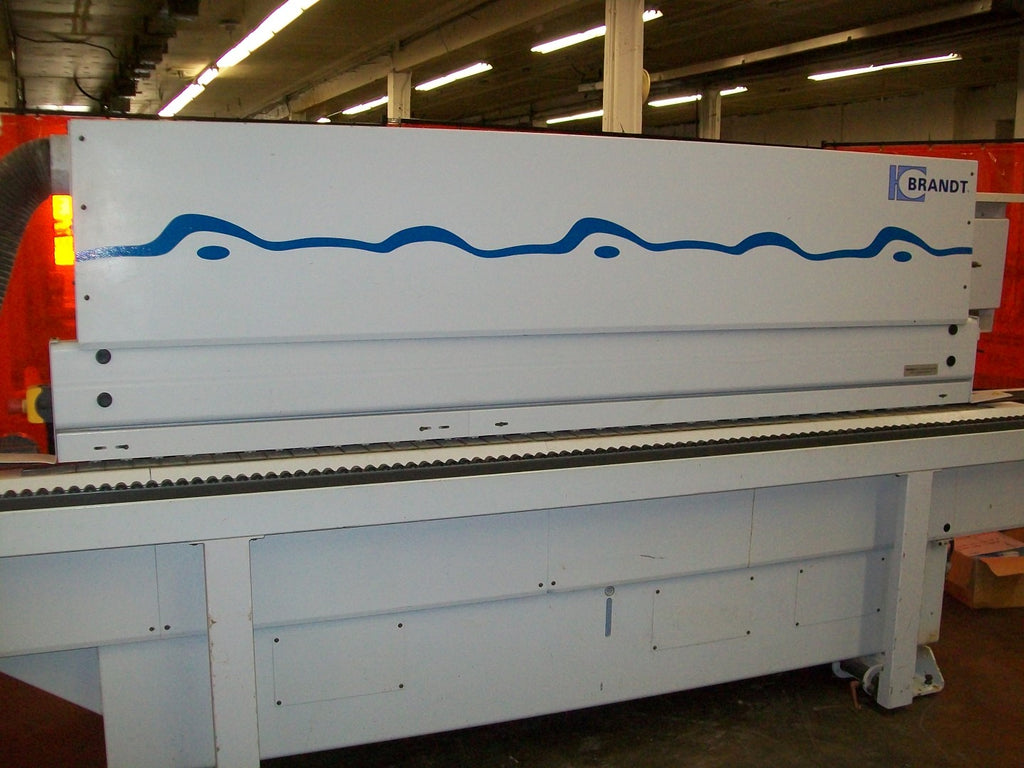

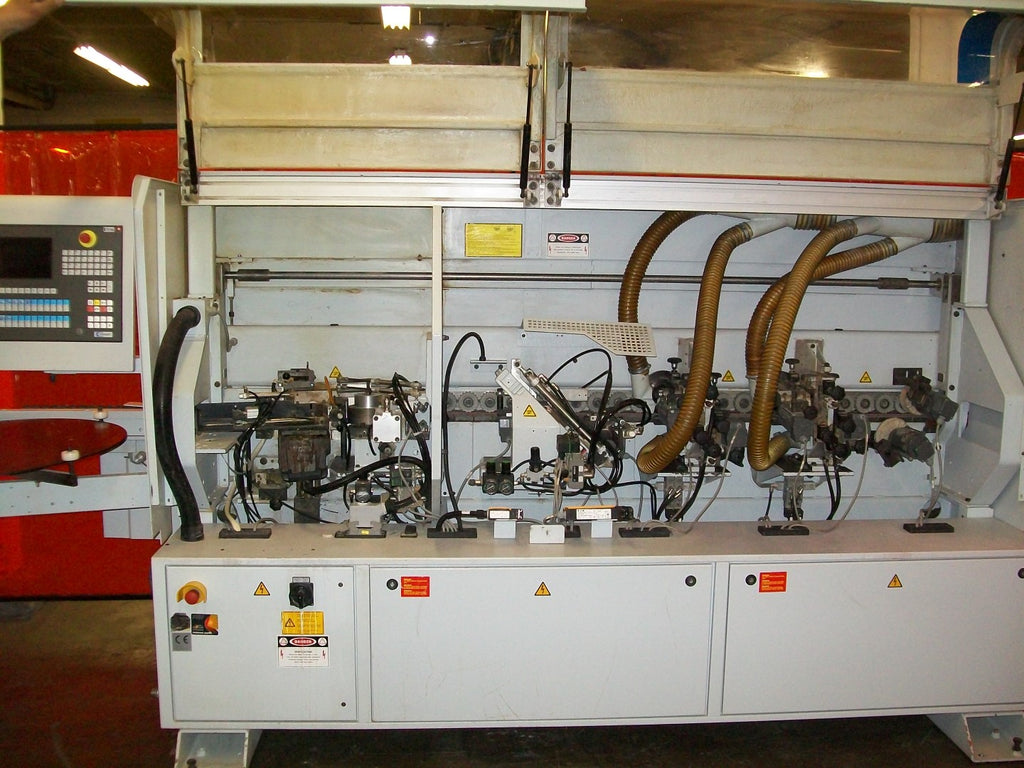

SOLD Used Brandt Automatic Edge Bander - Model: KDN-520/2
Installed New in November 2004

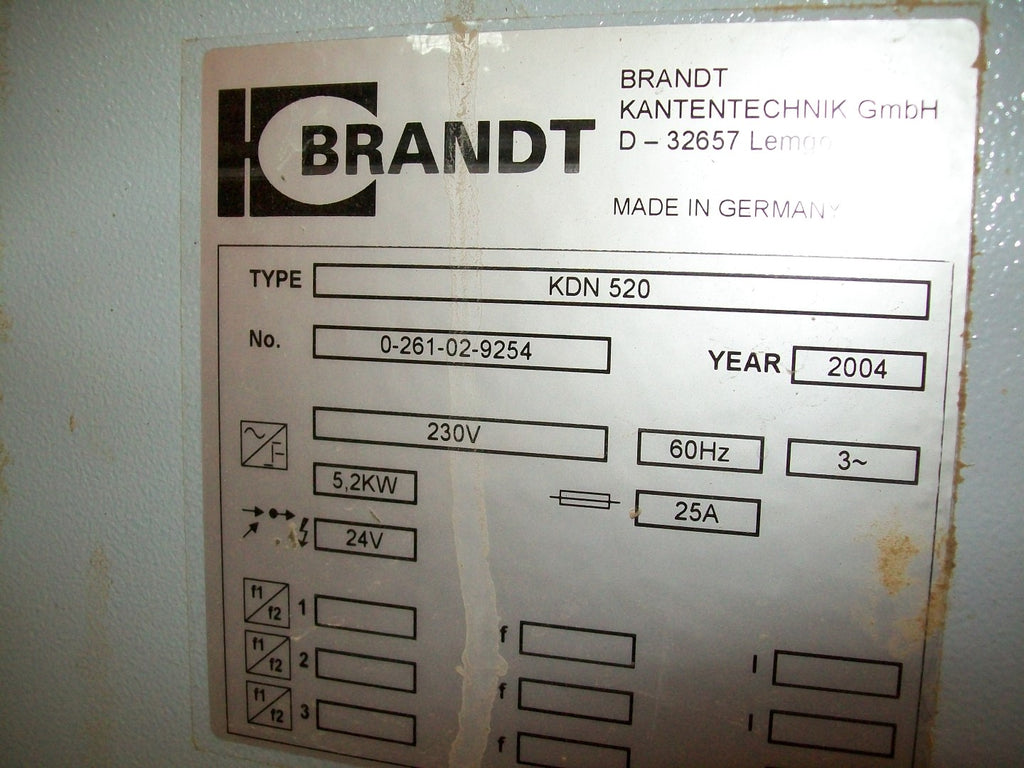

Serial Number: 0-261-02-9254
This used automatic edge bander manufactured by Brandt is equipped with an edge band thickness capacity of 0.016" to 1/4".
Technical Specifications:

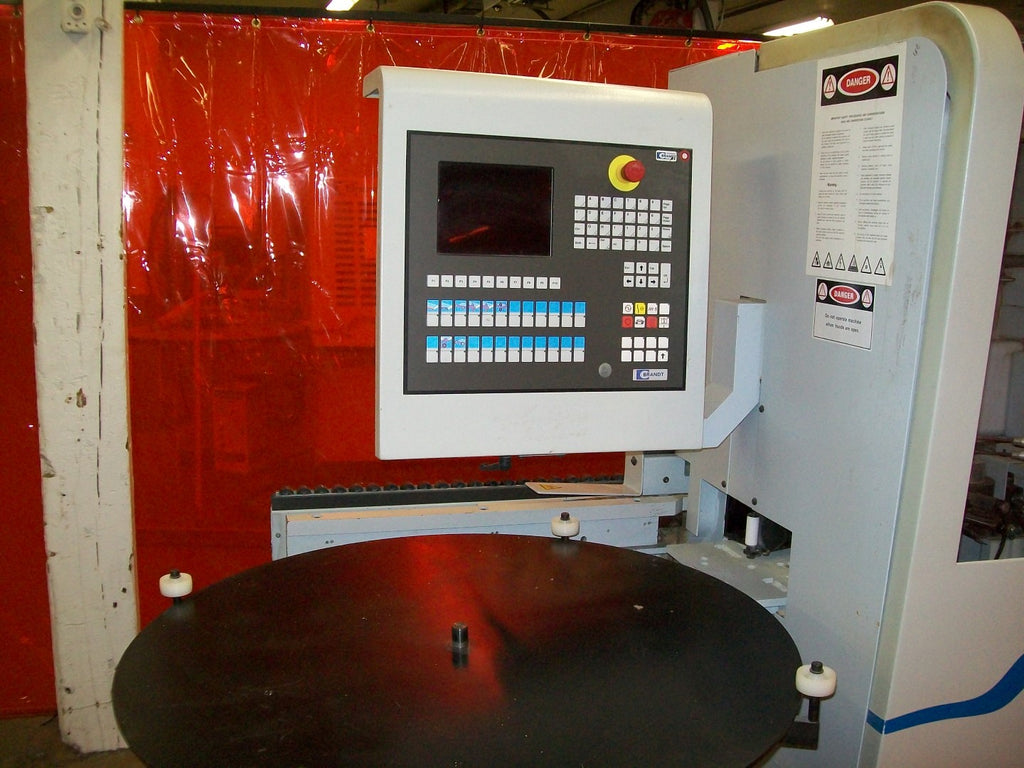

- PC-16 Program Control with color matrix LCD screen display
- 8 MB Ram and manual push button controls or program control operation
- a digital height indicator
- integrated line-control system
- universal automatic magazine for strip and coil feeding; with a large coil table (8100mm diameter) to accommodate large coils of 3mm PVC

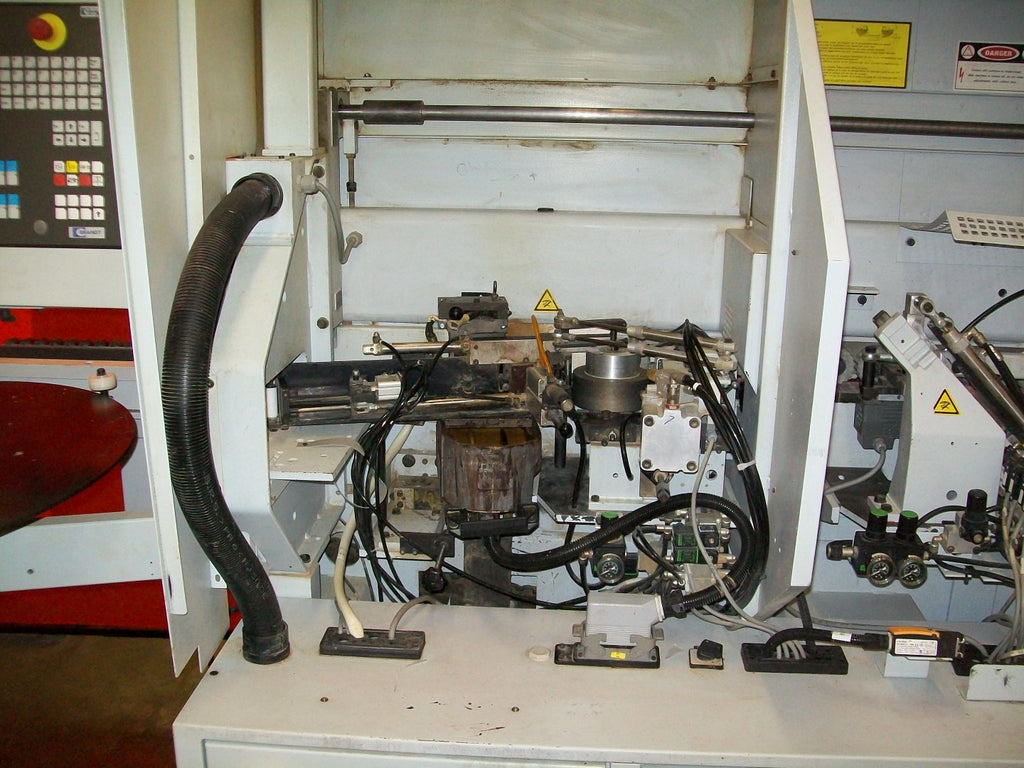

- Hot-Melt Granulate glue application system
- reversible rotation of glue application roller (and retractable)

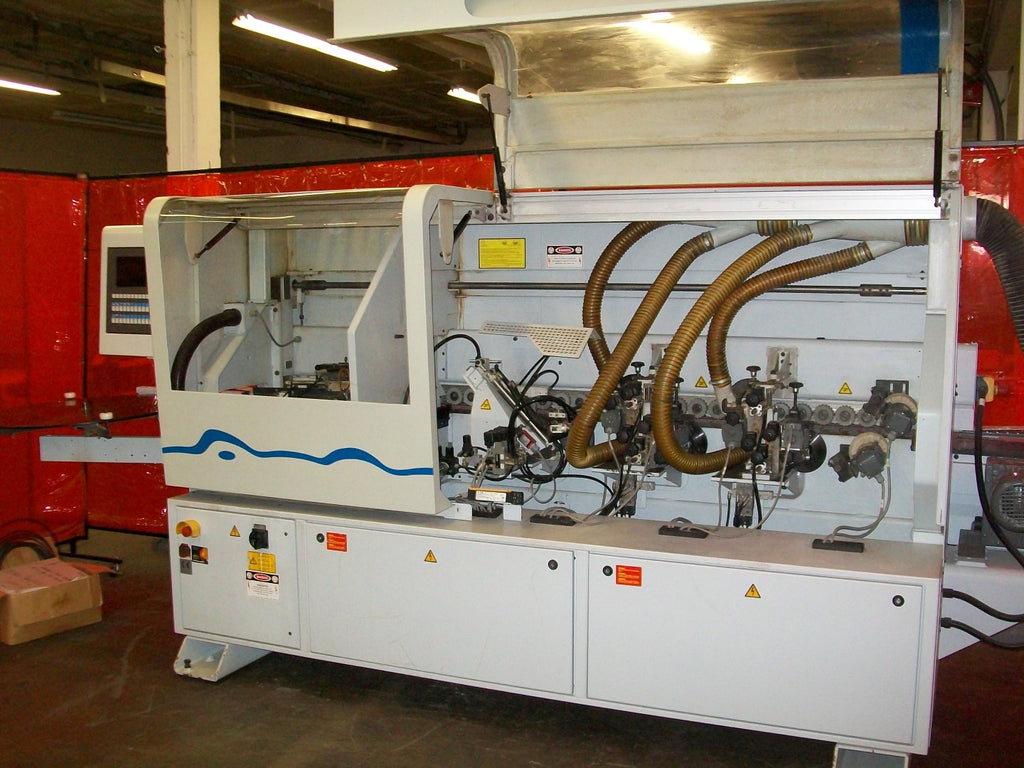

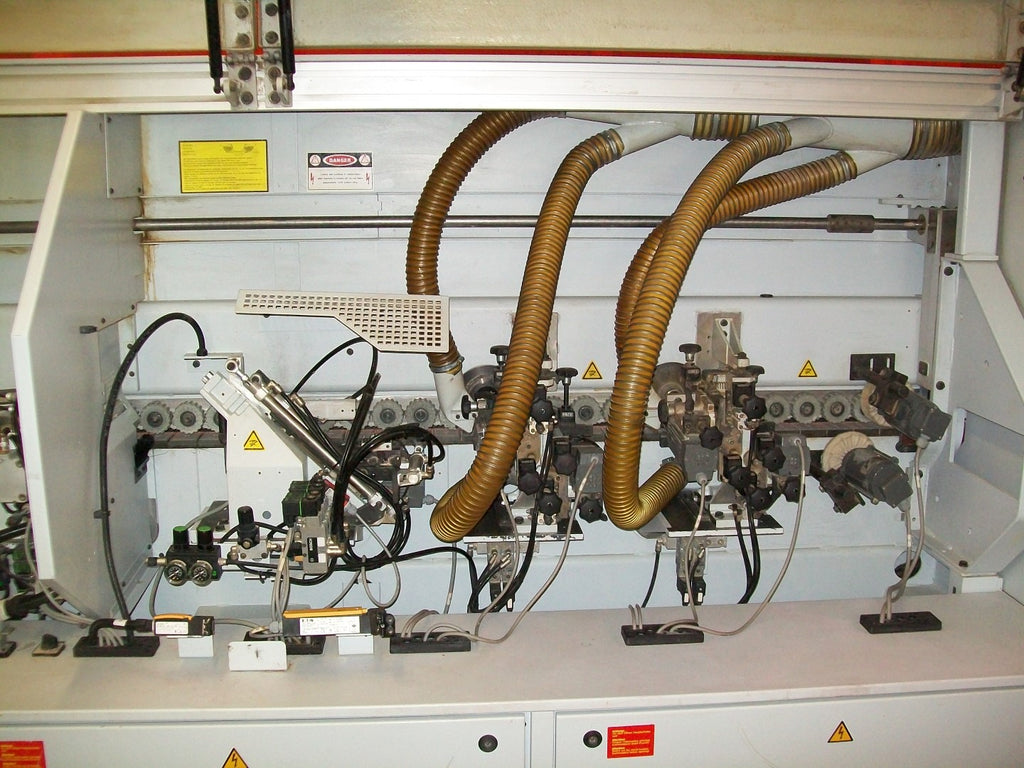

- double motor end trimming unit with straight and chamfer capability (chamfer up to 15 degrees)
- program controlled indexing from straight to bevel; fine trimming unit with digital "Quickset" system
- tilt range 0 to 15 degrees with program controlled indexing
- second fine trimming unit with digital "Quickset" system
- tilt range 0 to 15 degrees with program controlled indexing
- a top and bottom buffing unit
- electronic frequency changer which incorporates electronic brakes on all trimming motors and electronic controls wired for AC 3/60/230 volt operation
- a sound and safety enclosure
- an edge band thickness capacity of 0.016" to 1/4";
- edge and height capacity of 1/2" to 1-3/4"
- feed motor delivering a feed rate of 36 F.P.M.; with the first pressure roller driven and one split roller idle
- complete with manuals and all related equipment
