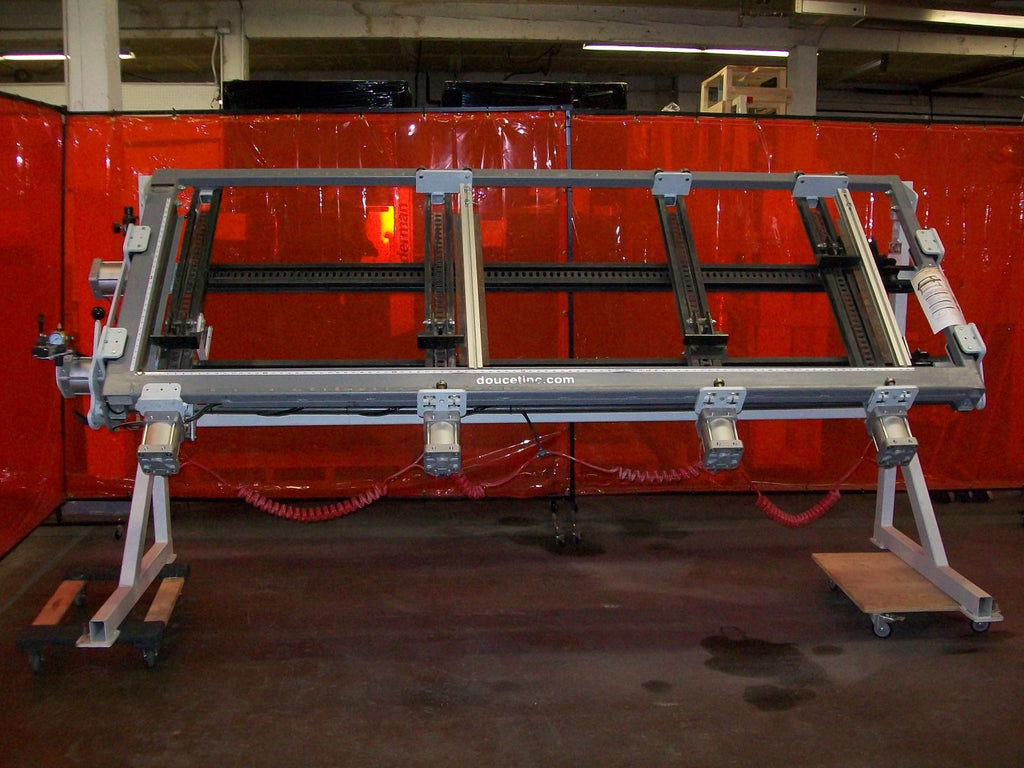

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96

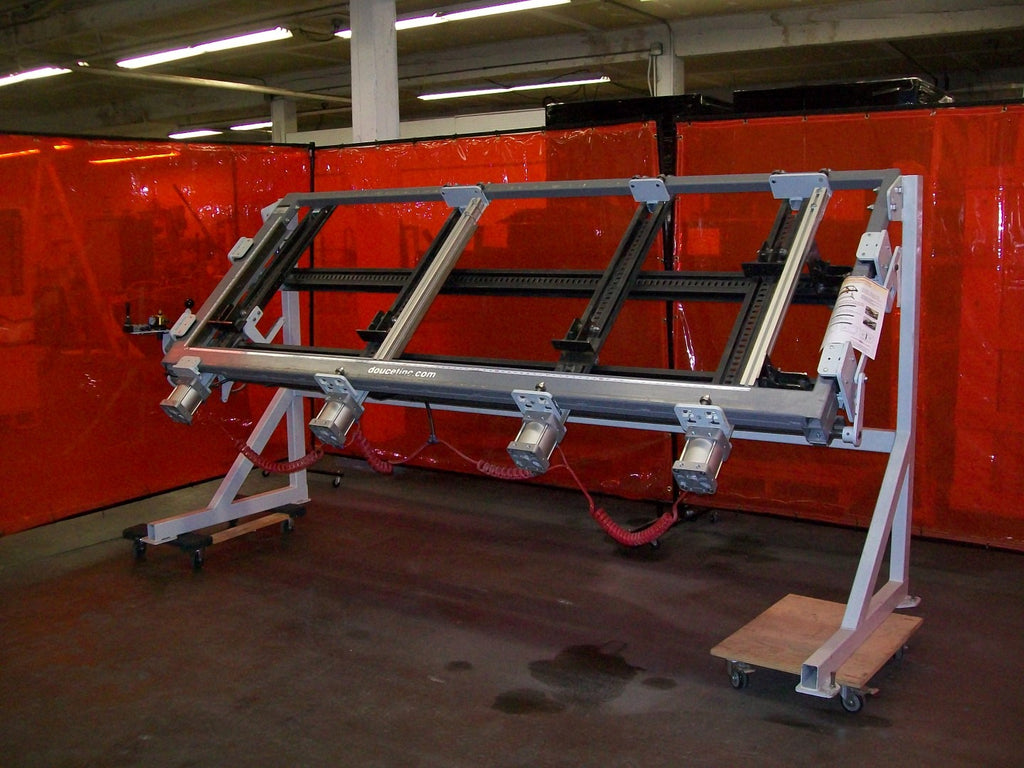

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 1

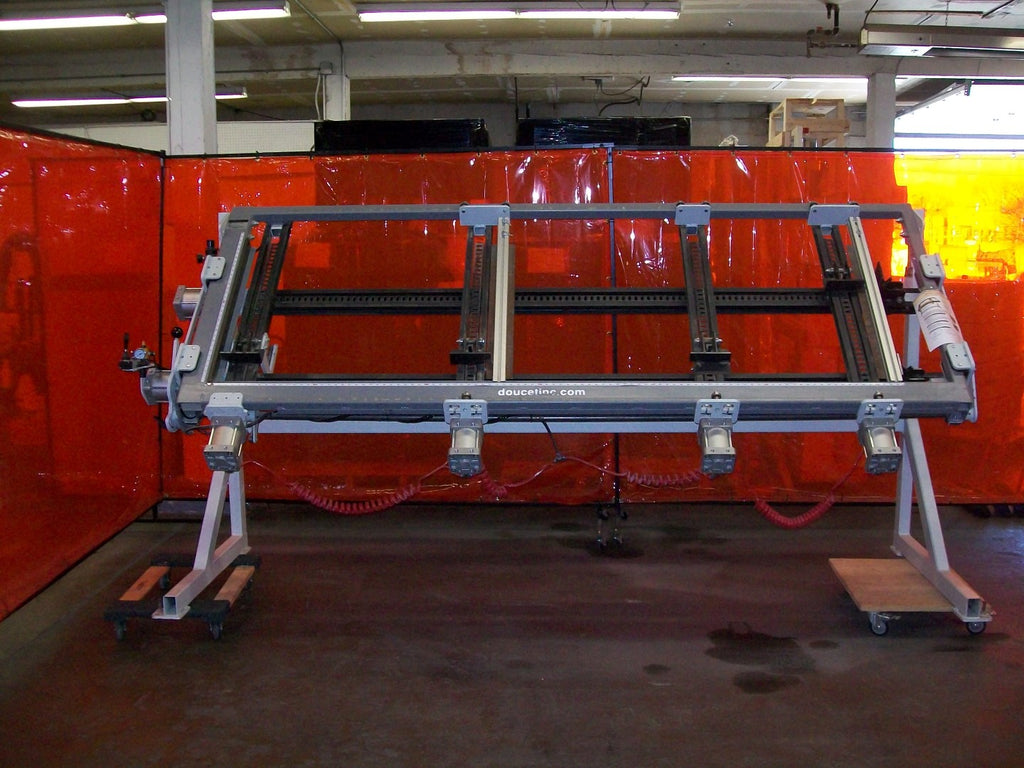

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 2

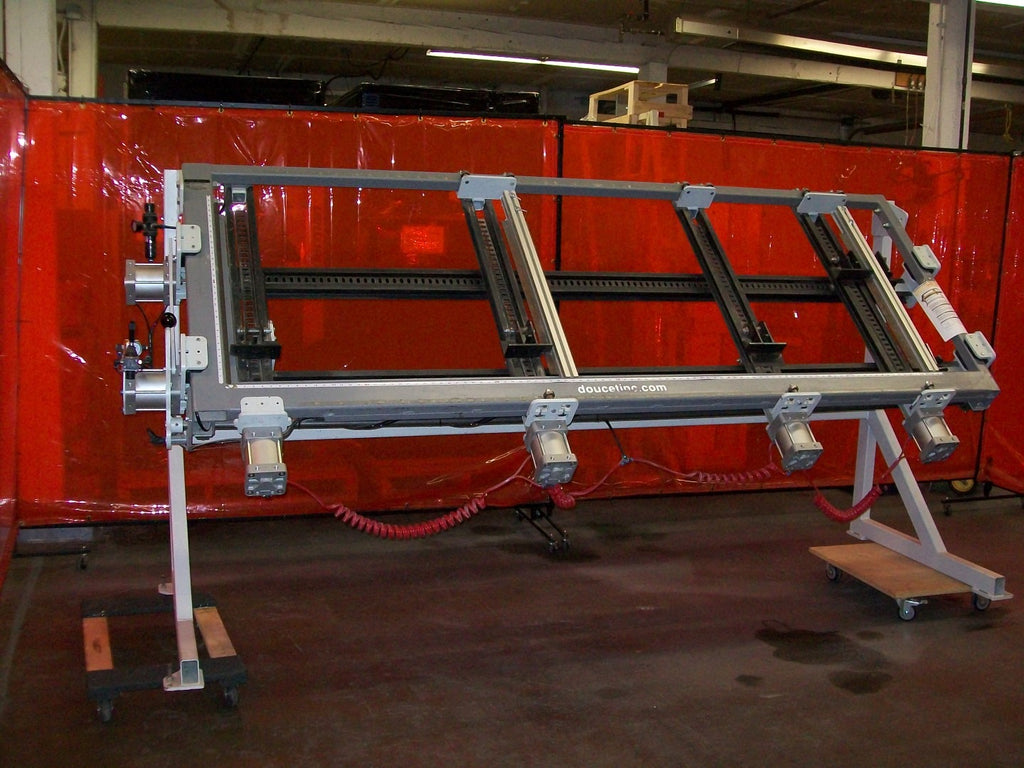

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 3

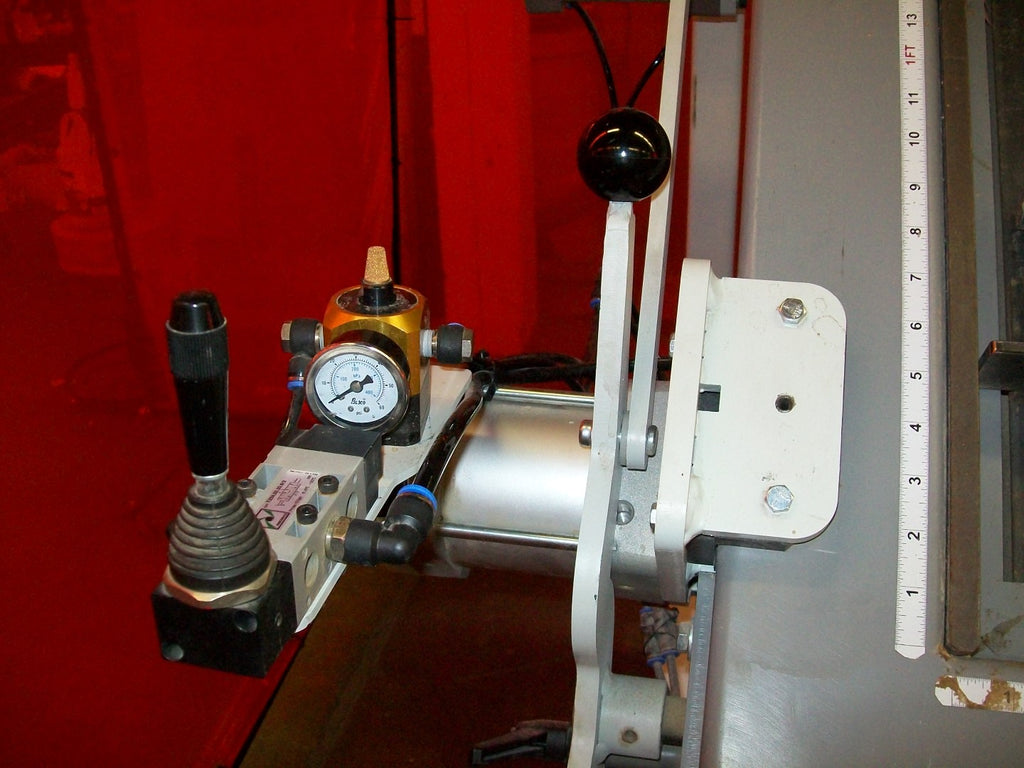

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 4

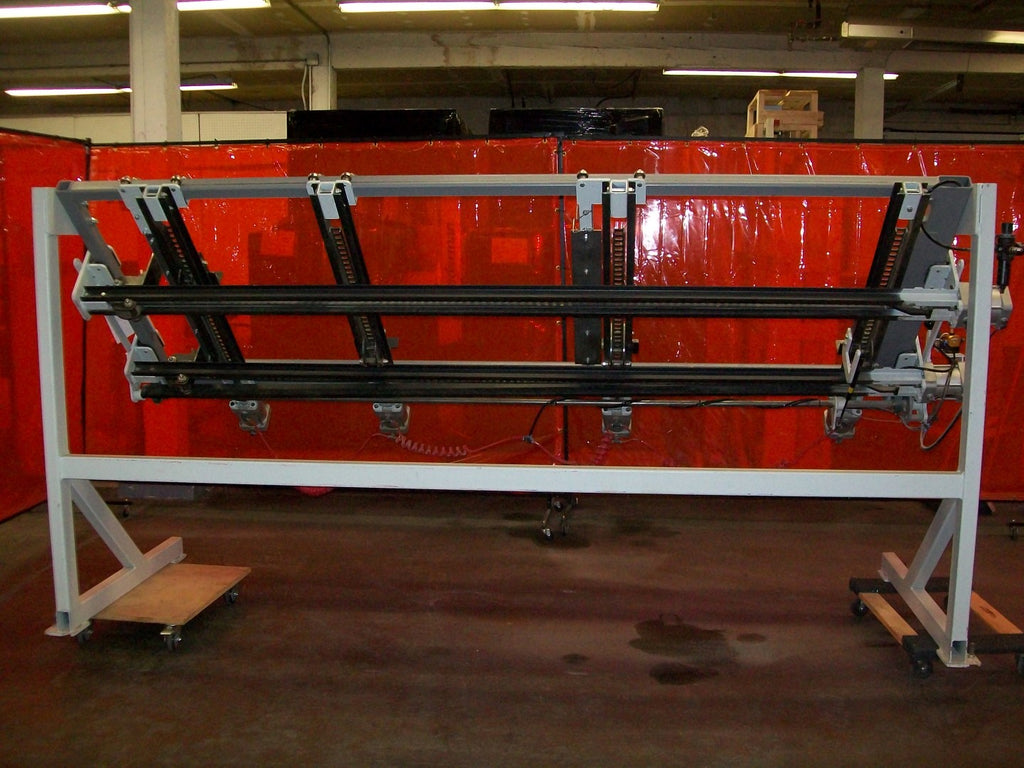

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 5

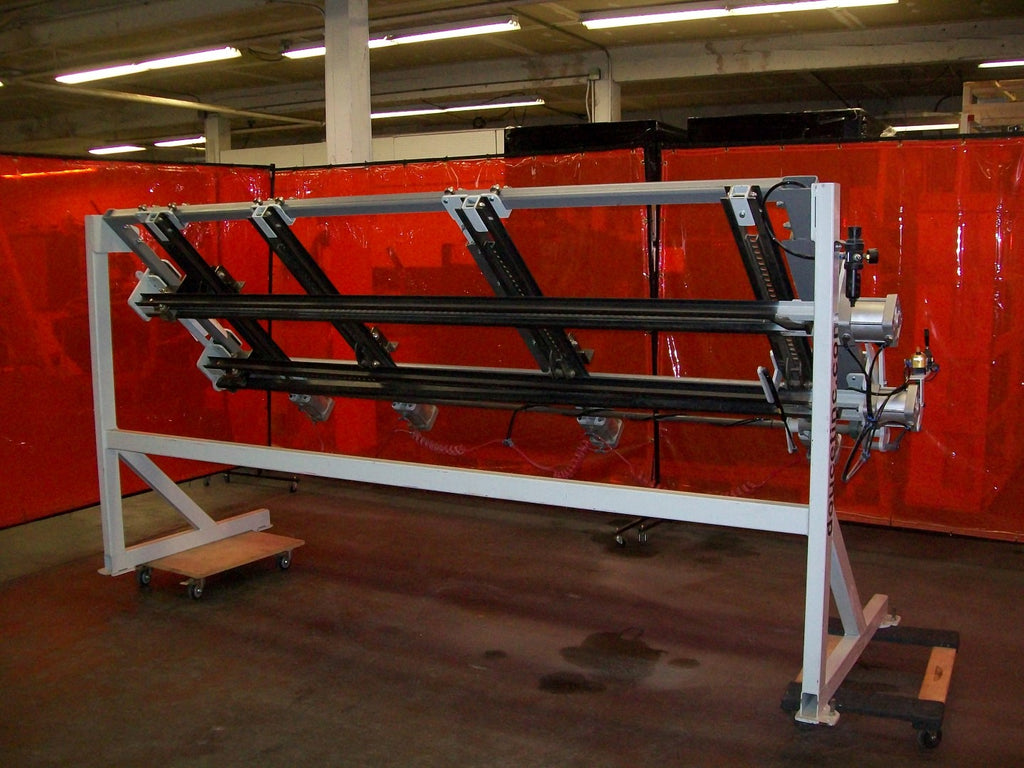

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 6

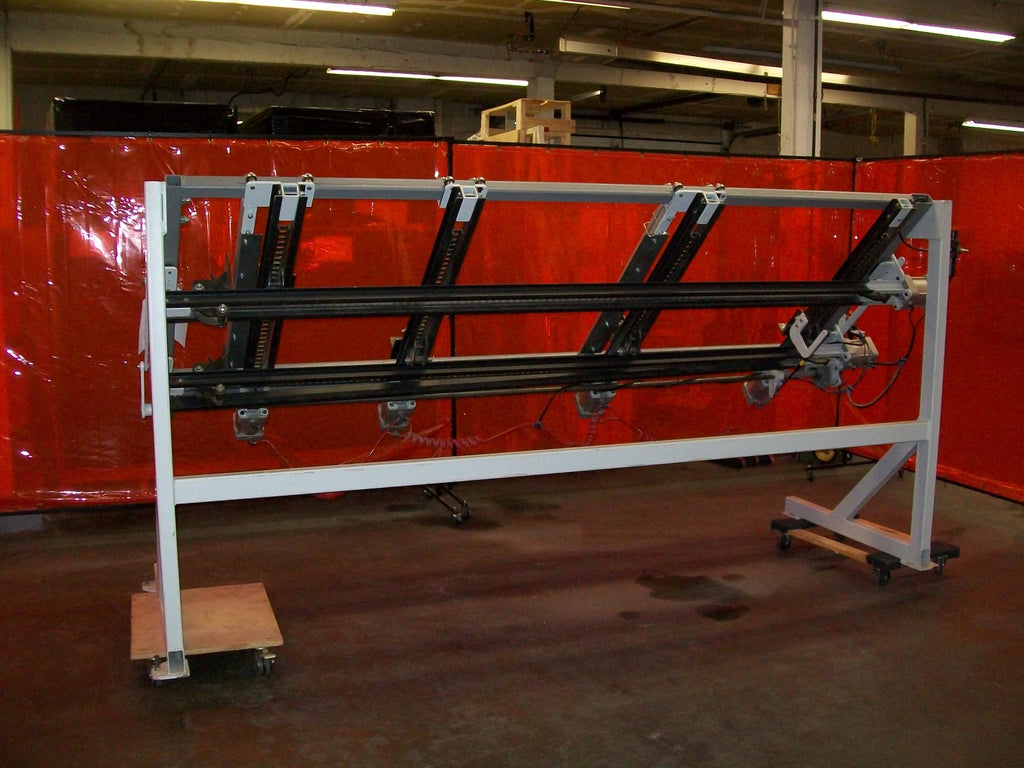

Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 7
Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96 - Detail 8

SOLD Used Pneumatic Tenon and Mortise Door Clamp Assembly System - Doucet Model SDM2-TM-1-30-96

Price:
$6,950

Description

If no preowned woodworking machinery is currently being listed in the category you are searching, call Stan the Woodworking Machinery Man at 770-861-0570 to check availability of incoming inventory, as our used machinery frequently sells before being listed.

Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

SOLD Used Doucet Pneumatic Tenon and Mortise Door Clamp Assembly System - Model SDM2-TM-1-30-96
Year: 2015
Serial Number: 2015-04-160

Technical Specifications:

This Used Door Master Pneumatic Tenon and Mortise Door Clamp Assembly System manufactured by Doucet features a max. clamping capacity of up to 30" x 96".

  • maximum clamping capacity of up to 30" x 96" doors
  • minimum capacity of 5-1/2" x 12-1/2" doors
  • one fixed vertical clamp; three
  • (3) mobile vertical clamps on roller bearings for easy positioning
  • one mobile horizontal clamp with a "gas spring" for easy positioning
  • pressure is distributed with 4" diameter air cylinders; at 80 PSI
  • 675 lbs. of clamping pressure per clamp
