Description

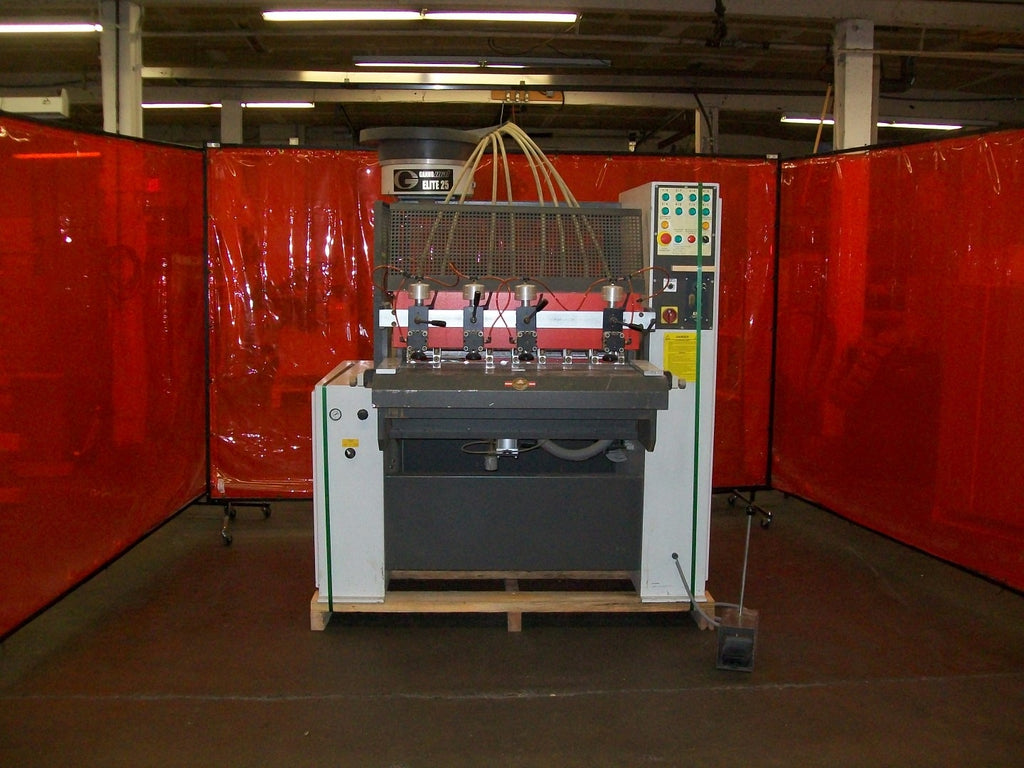

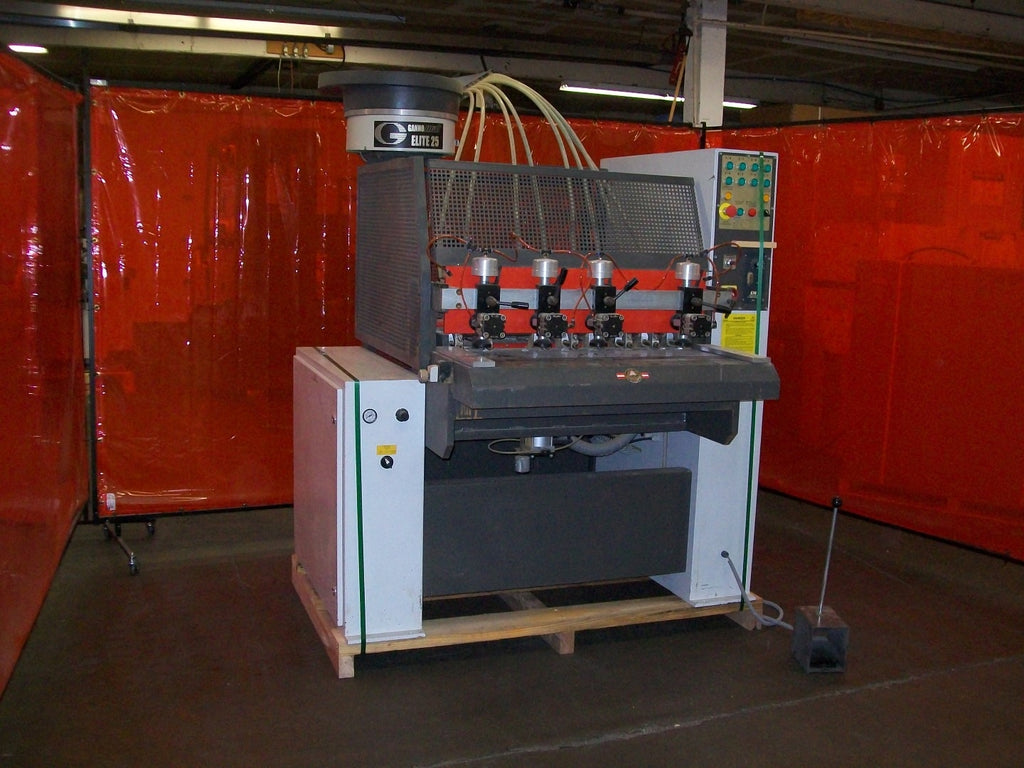

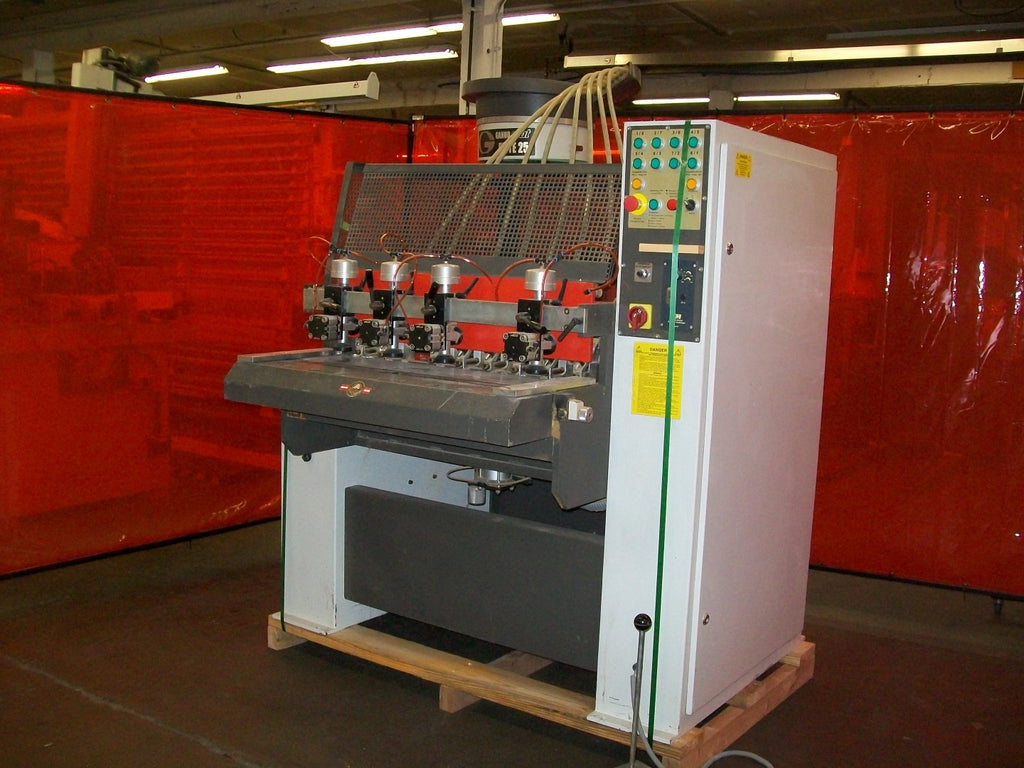

SOLD Used Gannomat Model Elite 25 Mirror Image Automatic Drilling and Dowel
If no preowned woodworking machinery is currently being listed in the category you are searching, call Stan the Woodworking Machinery Man at 770-861-0570 to check availability of incoming inventory, as our used machinery frequently sells before being listed.
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

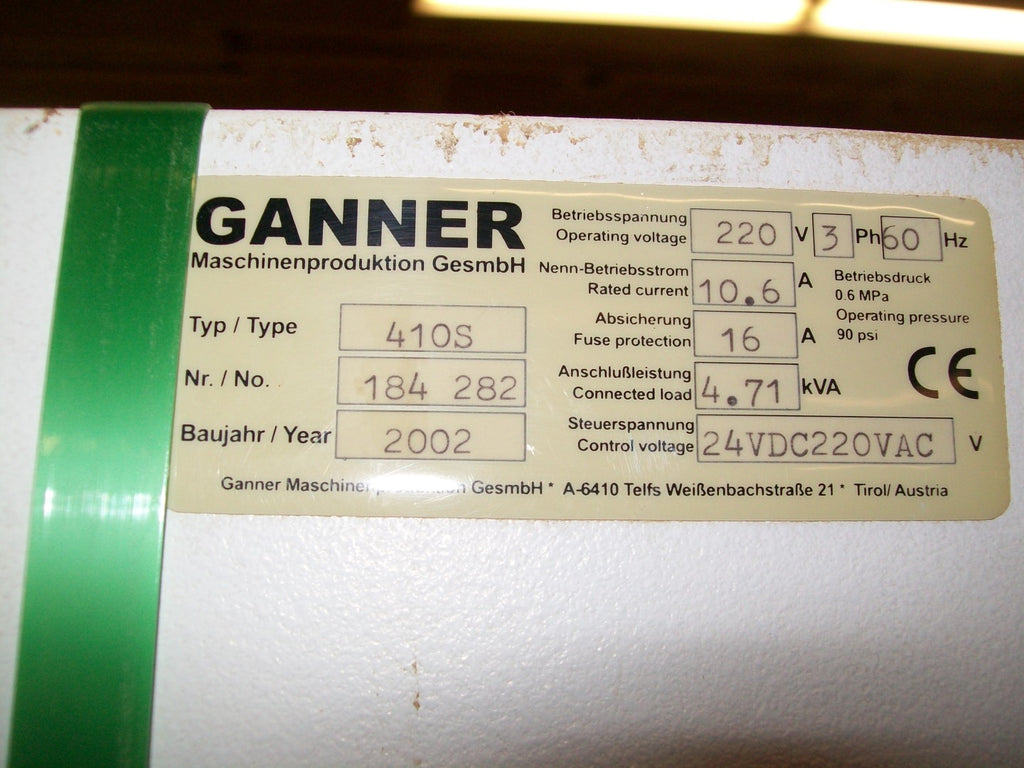

Serial Number: Serial Number: 184-282. (Type 410S).
This used automatic drilling and dowel insertions machine manufactured by Gannomat is equipped with one 25 spindle 3 H.P. drill head with spindles set on 32mm centers.
Technical Specifications:

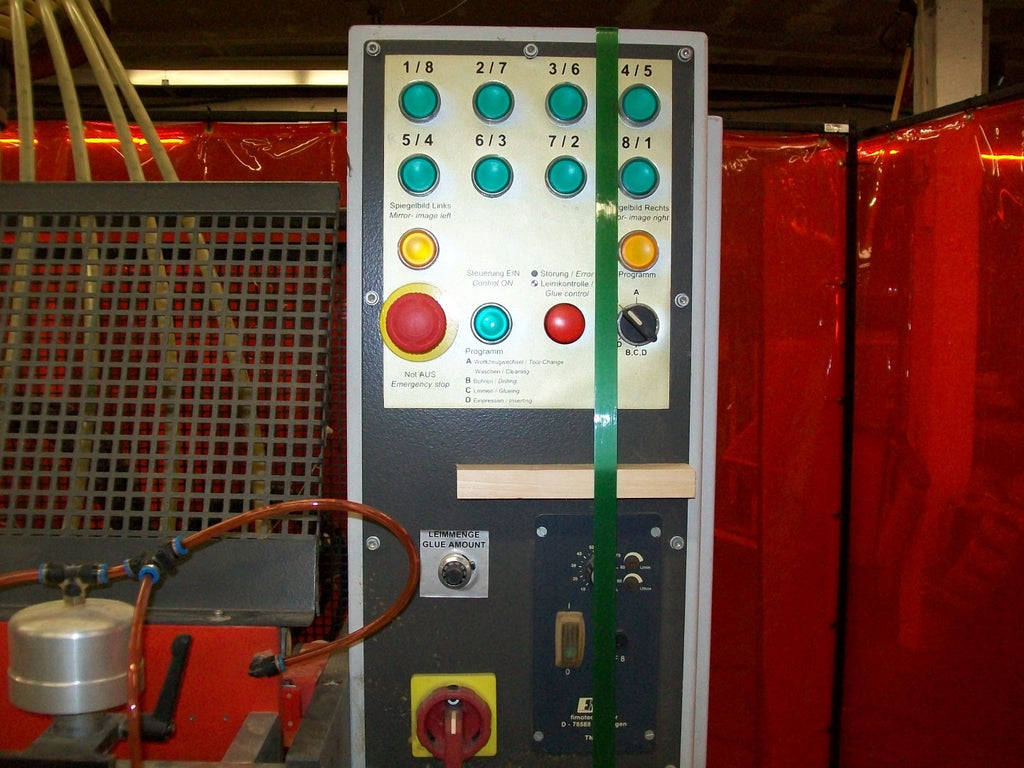

- Electronically controlled mirror image program
- one 25 spindle 3 H.P. drill head with spindles set on 32mm centers

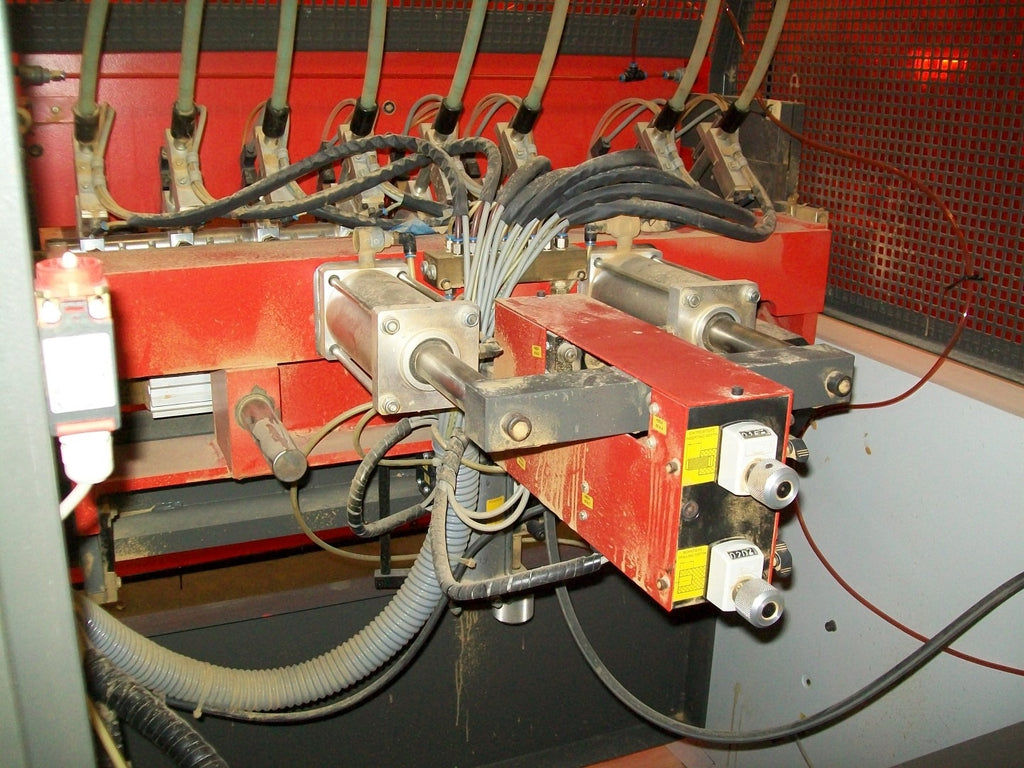

- eight (8) dowel inserting units (8mm) with high pressure gluing system
- fully electronic program selection of machine functions including: tool change
- drilling only
- gluing and insertion only
- drilling gluing and insertion and metered glue amount for 6 8 10 and 12 dowel sizes
- electrical controls wired for AC 3/60/230 volt operation
