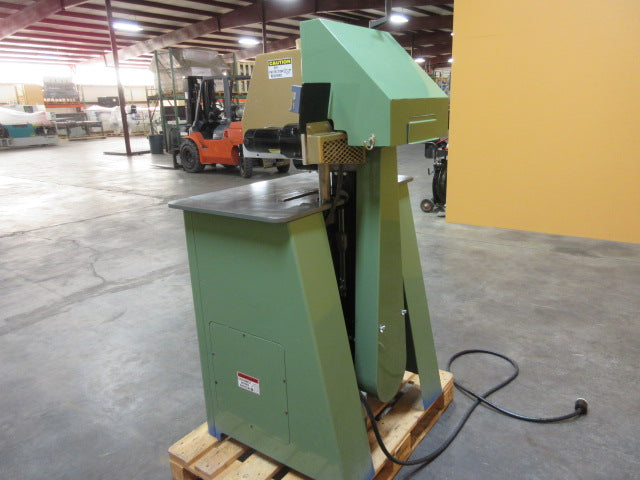

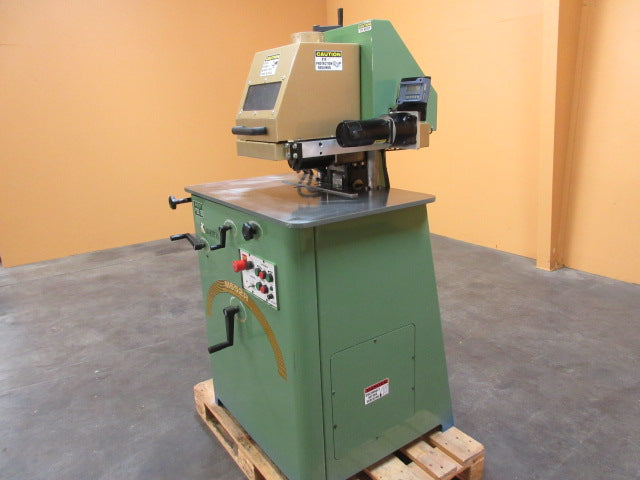

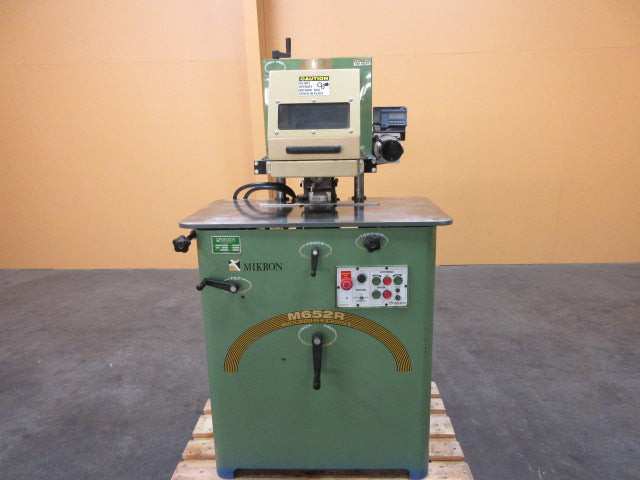

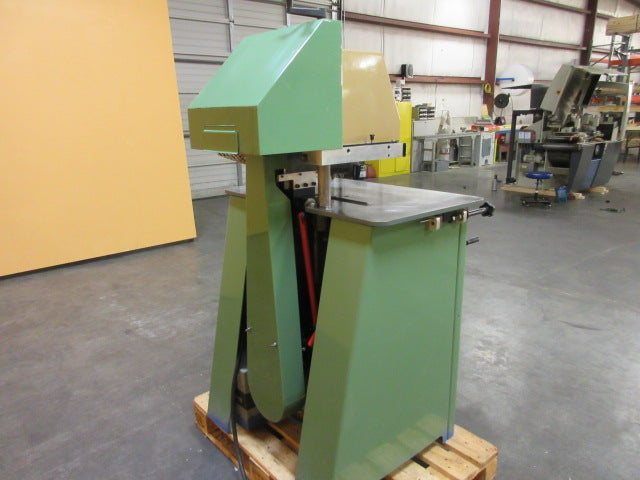

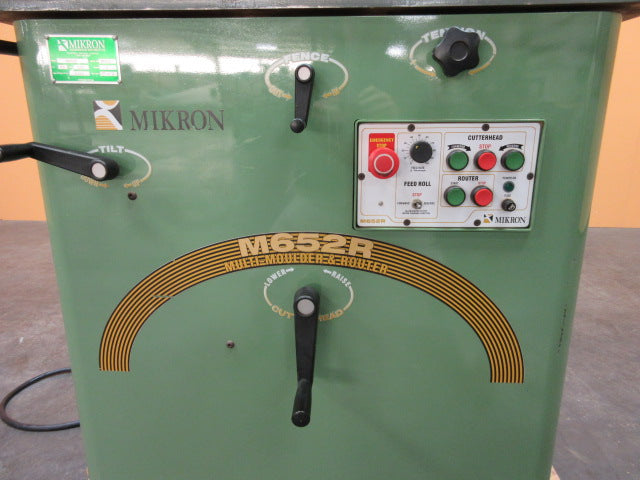

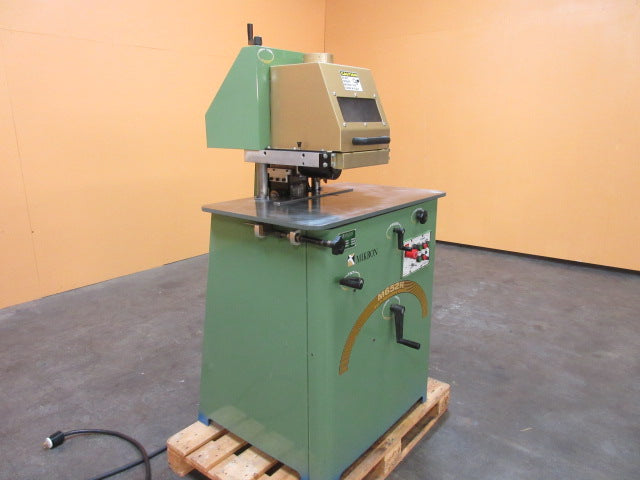

SOLD Used Mikron Arch Mould Shaper - Model: M652R
This used arch mould shaper manufactured by Mikron produces circles ellipses stair parts curved crowns bar rails and straight mouldings up to 6" wide.
Technical Specifications:
- 7.5 HP motor
- 6 000 RPM spindle speed
- Variable speed feed motor for feed rates of 0 to 30 FPM

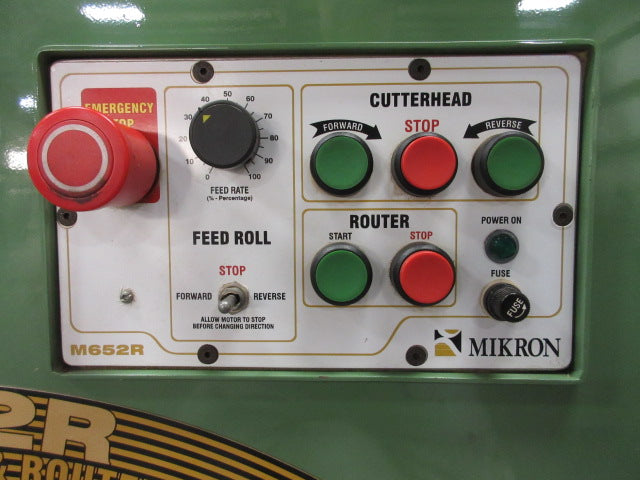

- Forward and reversing switch for feed
- Material width: 6" max.
- Material thickness: 7" max.

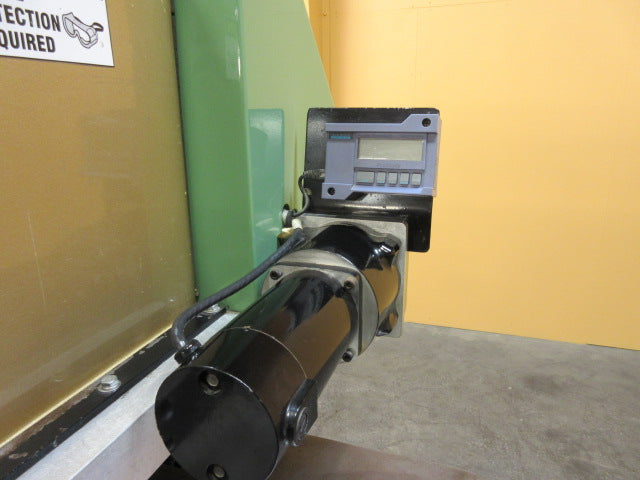

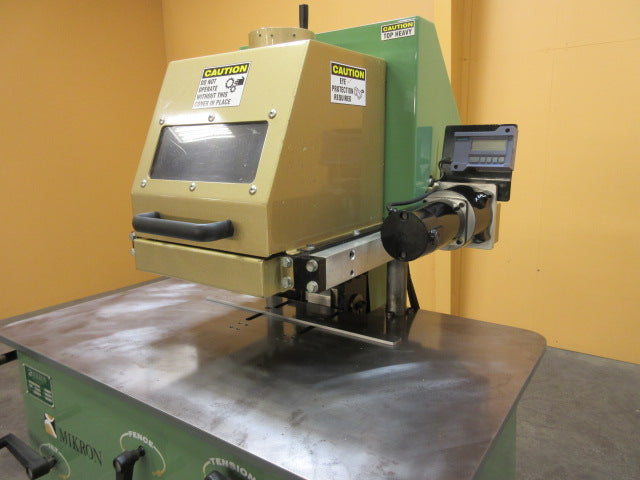

- Accurate Technology digital readout
- 38" x 24" table
- Cutter head tilt-able up to 52 degrees

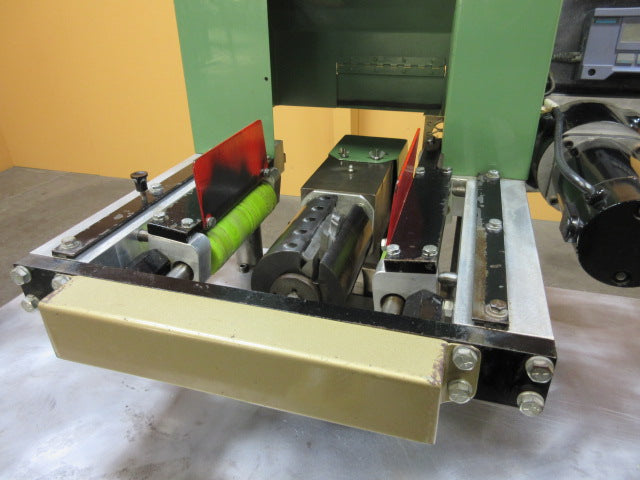

- Floating worktable Independently adjustable feed rollers
- Adjustable back fence

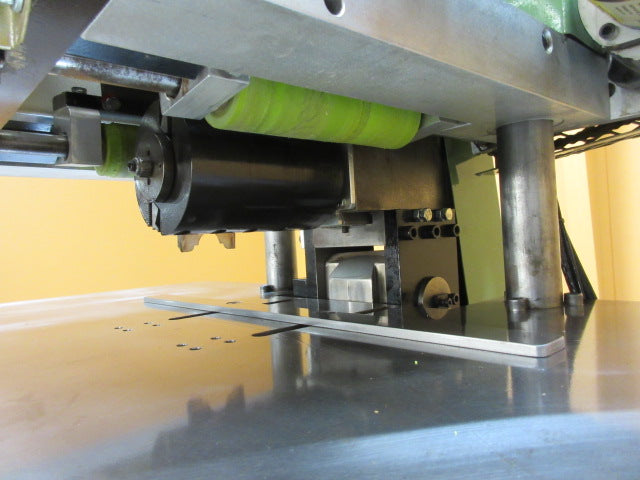

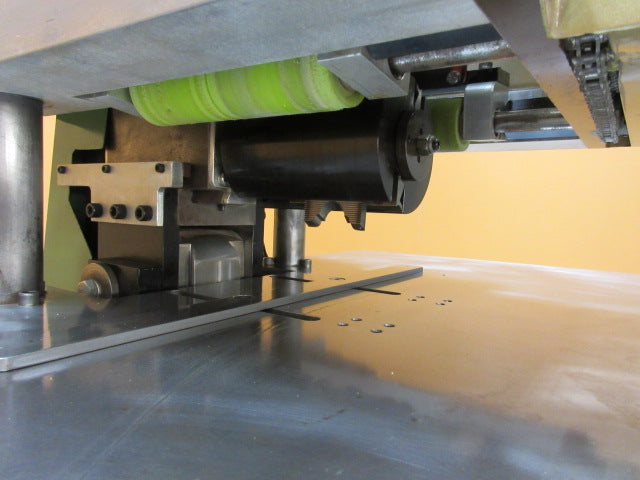

- Linear tracking system for smooth feeding under the cutter 6" 2-knife cutter head included 1-1/4" diameter arbor
- Operators manual and operator tools.
- Machine weight: Approximately 1 400 lbs.
-
Machine overall dimensions: 34" x 30" x 65" High
- Note: Router attachment option not included
