Description

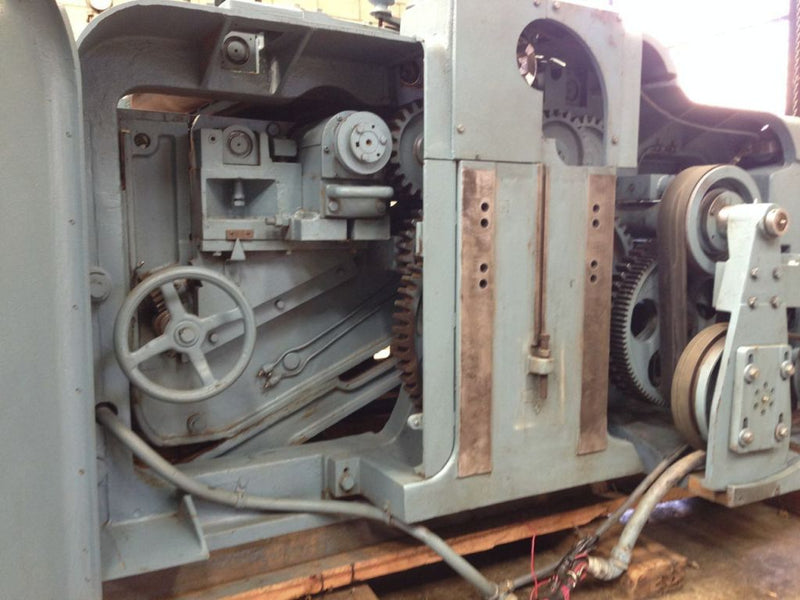

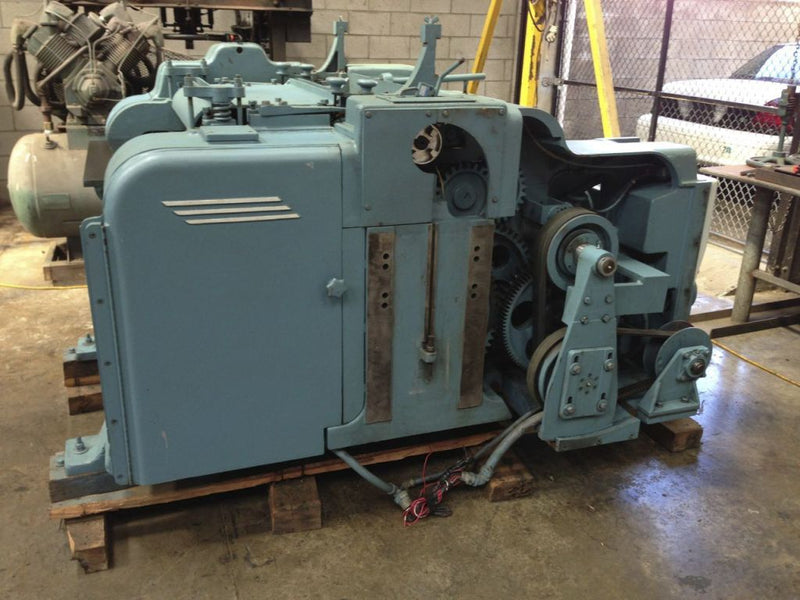

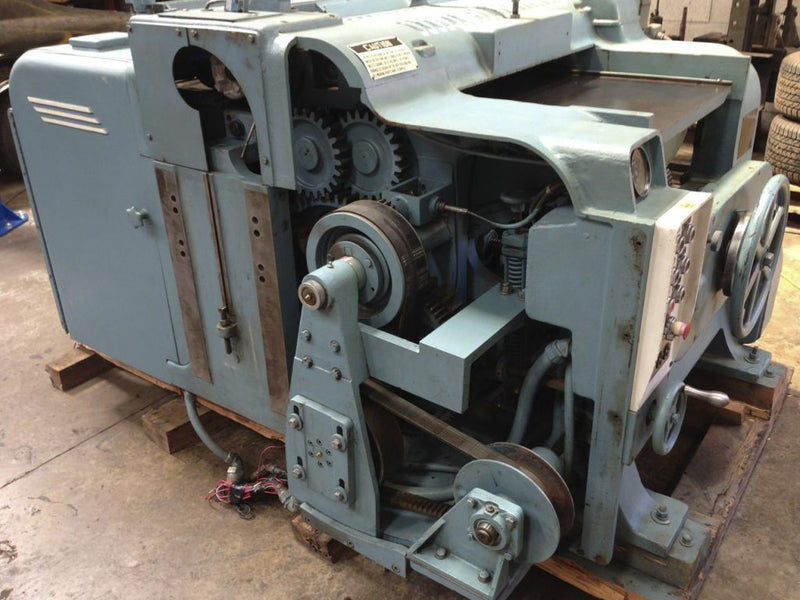

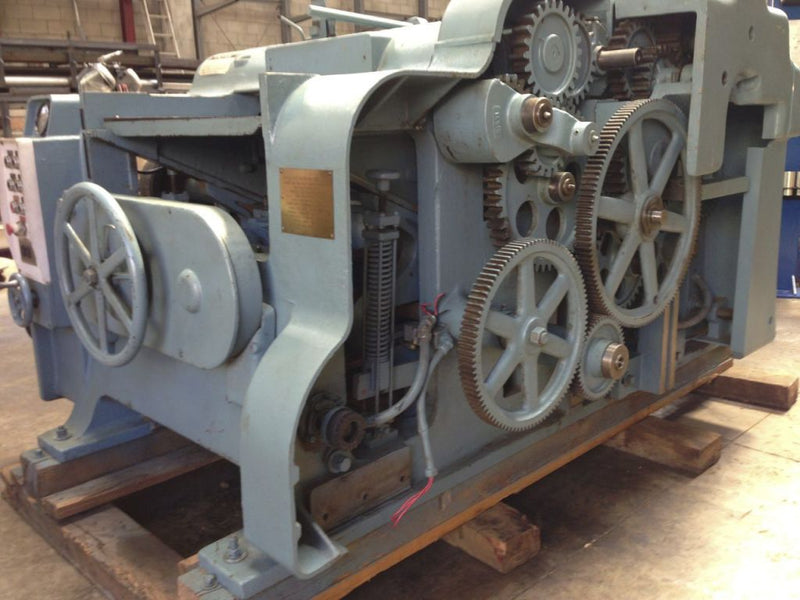

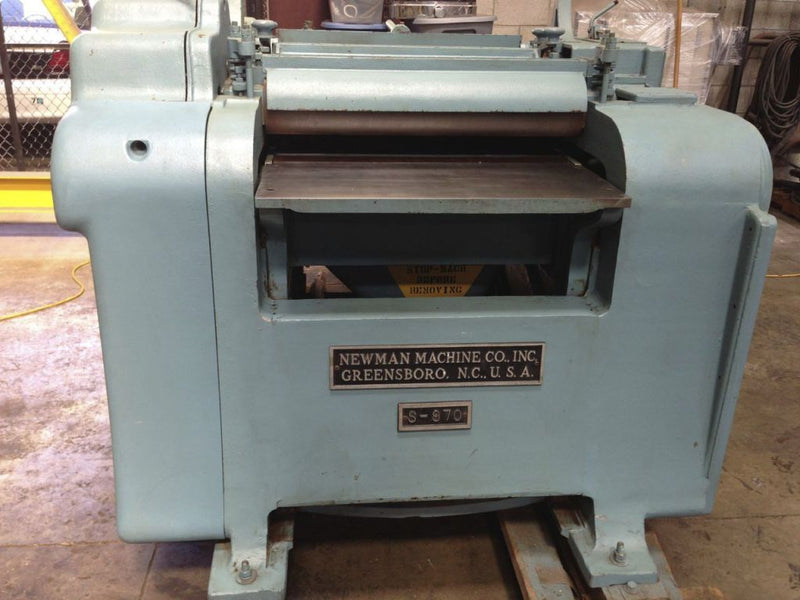

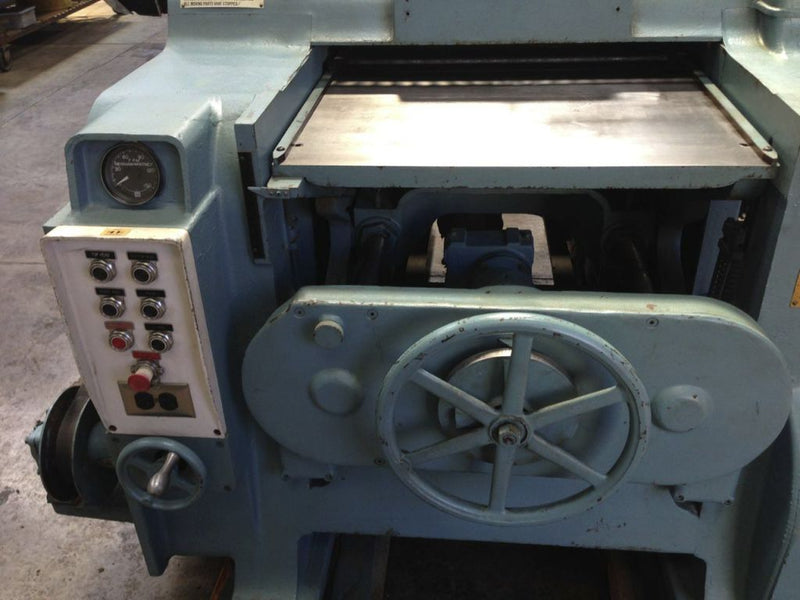

Used 1993 Newman Double Sided Planer - Model: S970
Year: 1993
S/N 18927
This used double-sided planer manufactured by Newman in 1993 features a 30" x 7" motor driven double planer.
Technical Specifications:
• 30” x 7” Motor Driven Double Planer.

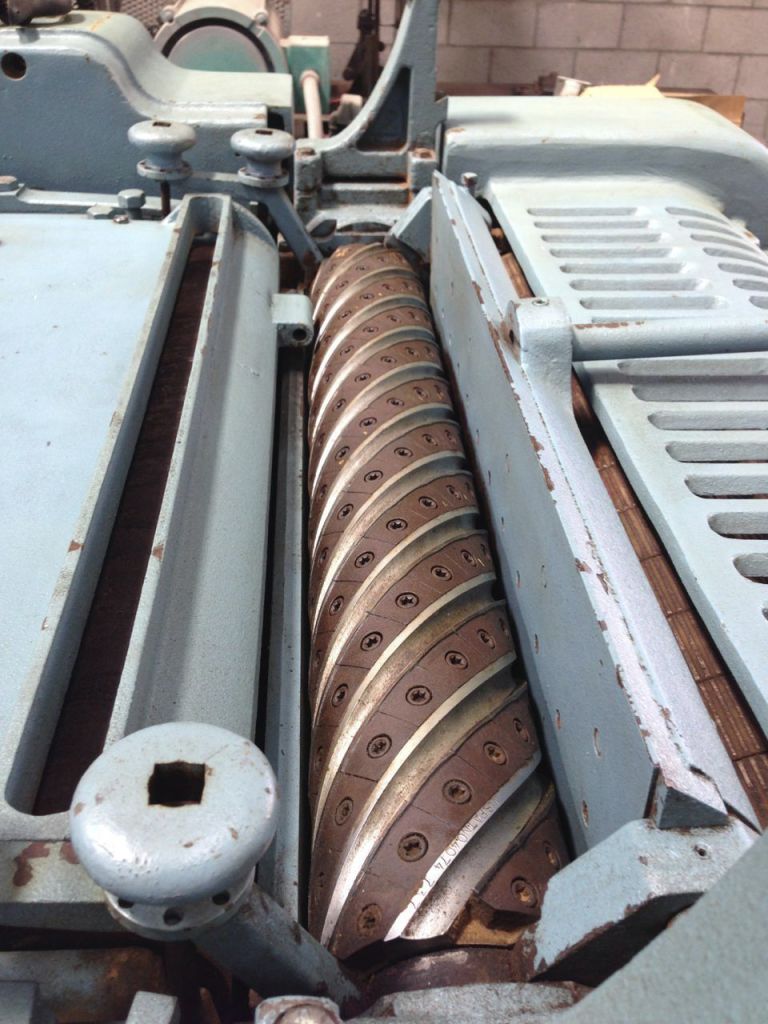

• HelixHead carbide insert knife cutterhead utilizing 15 x 15 x 2.5 mm inserts.
• 40 HP top head motor 30 HP bottom head motor 3 phase 60
• cycle 460 volt.
• 5 HP variable drive feed system.
• Power raise and lower.
• Chipbreaker and infeed rolls are sectional.
• No sharpening attachments as the HelixHead uses disposable carbide inserts
• Brakes for top and bottom cutterheads.
• Height of machine to top of shaving pipe 66-1/4"
• Distance required to remove lower head 74-3/4"
• Distance between holddown lag screw holes 33-5/8"
• Rate of feed 33 to 98 FPM
• Maximum stock thickness 7"
• Minimum stock thickness 1/8"
• Single piece feed: Unbutted 14"
• Butted 6" Min.
- Top head motor 40 HP
- Bottom head motor 30 HP
• Floor space 7'3" x 8'6"
• Shipping weight 12 400 Lbs.
