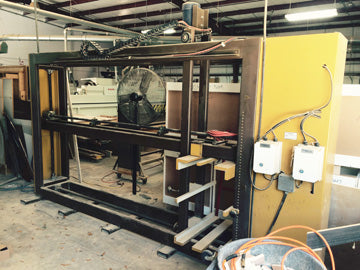

SOLD Used Ritter Case Clamp – Model R-525
Year: 1997
List Price: $9 995.00
Condition: CLEANED/CHECKED
Machine Stock Number: 152-1
Member Stock Number: CC150011765
Description: Used Ritter Case Clamp – Model R-525
• Electronic Operation
• Single Side Clamping Cycle
• 50” x 100” Capacity
• Semi-automatic Beam Adjustment
• (2) 2HP Beam Drive Motors
• Push Button Operated Clamp Cycle
• Single Operator Station
• (2) Air Assisted Torque Clutches
• 0-6 000 PSI Clamping Pressure Range
• Lead Screw Guided Clamping Beams
• 1-1/2” Diameter Lead Screws
• Automatic Positioning Corner Jaws
• !(3) Top / Bottom Pressure Plates
• !(3) Right / Left Side Pressure Plates
• !Adjustable Frame Squaring Plates
• !Beam Overtravel Limit Switches
• !Magnetic Controls
• !Wired 3-phase 220 Volt 60hz
• !1/4” Filter Regulator Lubricator
• !Machine Weight: 2 122 Lbs.
• Floor Area: 42” x 150” x 102” High
