SOLD - Used Edgebander - SCM Model K 203 ERT

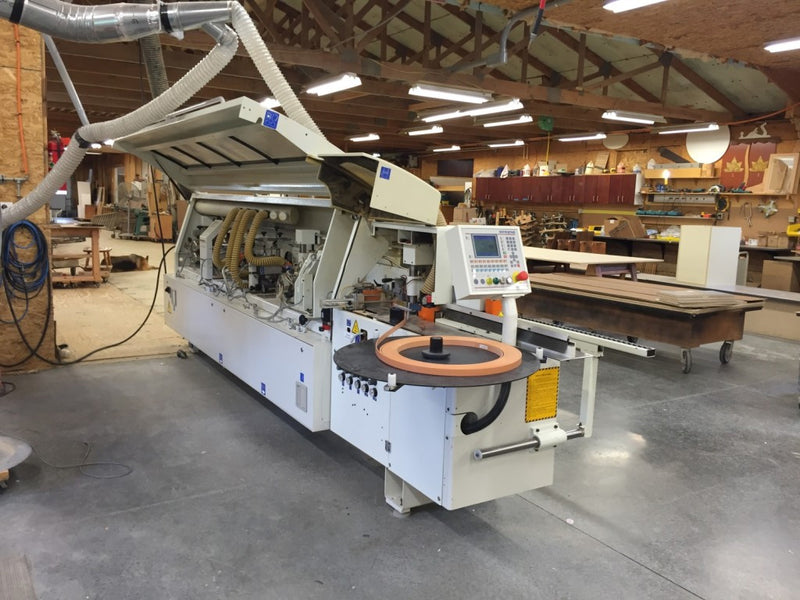

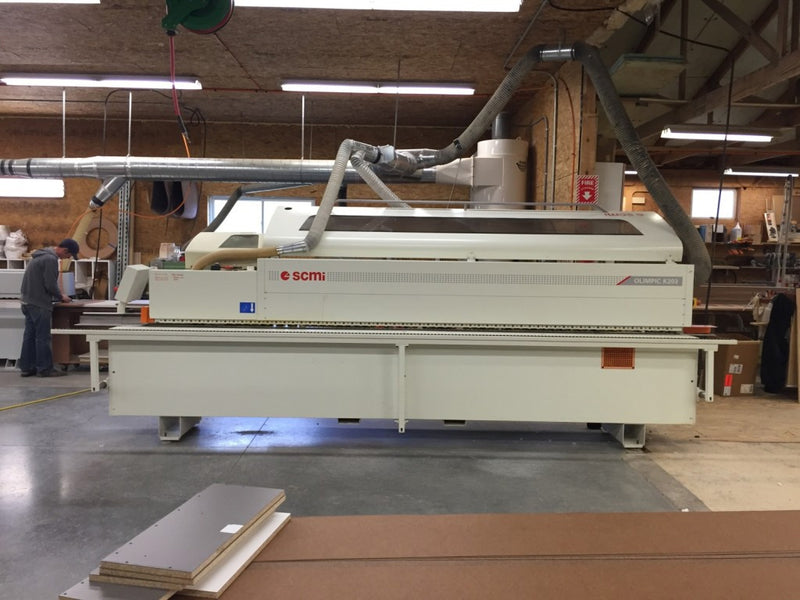

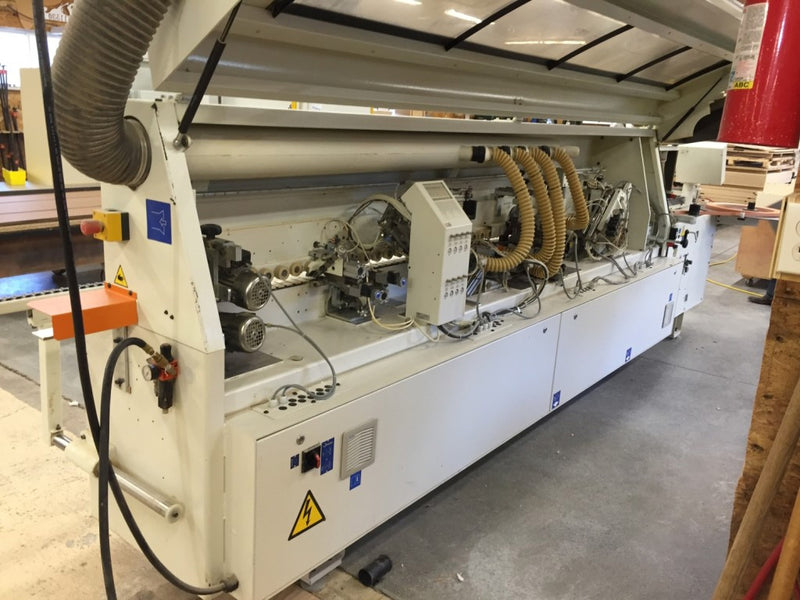

This used (2007) automated single-sided edgebander manufactured by SCM was designed to be used for edgebanding straight vertical profiles w/coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) And this unit accommodates a maximum thickness of 8mm.
Machine components include...
Machine Base
The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy.
Pressure Beam
All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has digital height indicators and two rows of pressure rollers with steel bearings.
Capacity and Speed Specfications:
• Edgebanding thickness: .4mm - 8mm (.016-5/16”)
• Guillotine capacity: 3mm
• Feed speed: 36 ft/min.
• Panel height: 3/8” min – 2 1/8” max
• Minimum panel length: 5 1/2”
• Minimum panel width: 2 3/8”
• Minimum distance between panels: 20”
Technical Specifications:
-

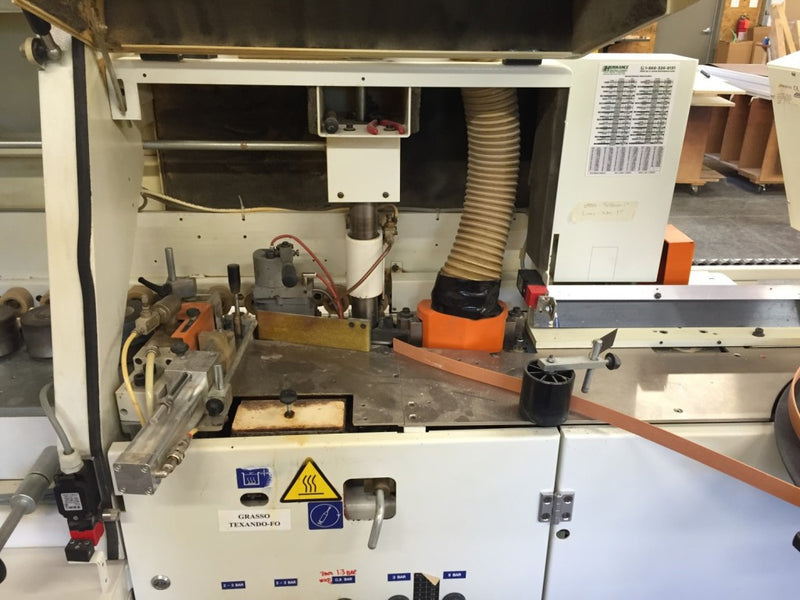

Glue Pot Unit:
Heating Time Approx. 8-10 min.
Glue Capacity 2.2 lbs.
-
Pre-Milling Unit:
Horsepower 3 HP
RPM 19 000 RPM
Max. Stock Removal 1mm
-
End Cutting Trimming Station:
Horsepower .50 HP
RPM 12 000 RPM
Tilting 2 preset positions
-
Edge Trimming Unit:
Horsepower .70 HP
RPM 12 000 RPM
Tilting 0-10 degrees
Cutting Tools Straight 3mm radius cutters
-
Corner Rounding Unit:
Horsepower .70 HP (2 motors)
RPM 12 000 RPM
-
Scraping Unit:
Knife Radius 3mm
-
Buffing Unit:
Horsepower .25 HP
RPM 2 800 RPM
Diameter/Bore 152mm/17mm
- Feed Motor Horsepower 1 HP
- Feed Speed 36 FPM
- Frequency Converter 200 Hz
- Dust Hood Diameter 120mm
- Pneumatic Operating Pressure 90 PSI
- 230 volt 3 Phase.
