Description
If no preowned woodworking machinery is currently being listed in the category you are searching, call Stan the Woodworking Machinery Man at 770-861-0570 to check availability of incoming inventory, as our used machinery frequently sells before being listed.
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

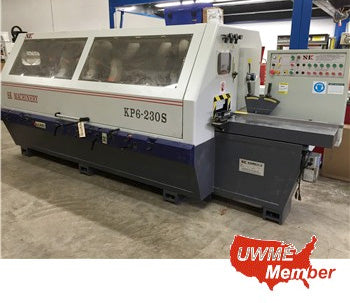

SOLD - Used Feed Through Moulder - SK Model KP6-230S - 6-Head
List Price: $23 900.00
Year: 2007
Condition: CLEANED/CHECKED
Machine Stock Number: US0449
Member Stock Number: MD290012037

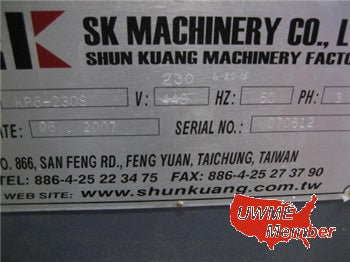

Serial Number: 070612
Machine ID: US0449

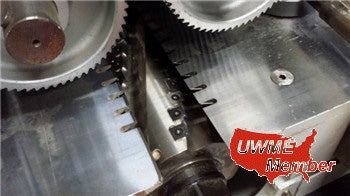

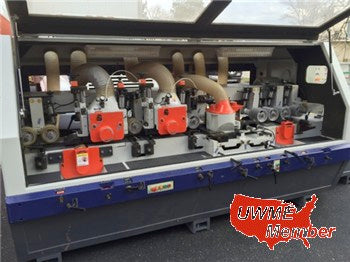

Description: Used Feed Through Moulder - SK Model KP6-230S - 6-Head. Used SK Machinery Model KP6-230S Heavy Duty 6-Head Through Feed Moulder. Well-maintained by previous owner. Very Low Hours. Includes full set of S4S cutterheads..1st head is a spiral insert head w/reference engraver.

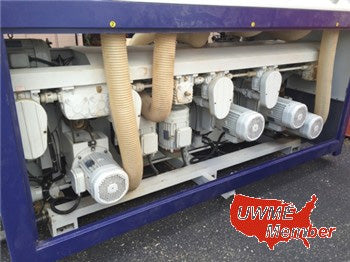

- Feed Motor: 5HP Variable (18-78 fpm)
- 1st spindle bottom: 10HP
- 2nd spindle right: 10HP
- 3rd spindle left: 10HP
- 4th spindle top: 15HP
- 5th spindle top: 15HP
- 6th spindle bottom: 15HP
- Working width: 1/2" to 9 1/16"
- Working height: 3/8" to 5"
- Spindle Speed: 6000 rpm
- Spindle Diameter: 1 13/16"
Clamping length horizontal spindle: 9.44 -Clamping leng
th vertical spindle: 5.12
- Diameter of upper feed rolls: 140mm
- Diameter of bed rolls: 100mm
- Adjustment range of straightening table: 1/2"
- Adjustment range of vertical spindle (axial): 60mm
- Adjustment range of horizontal spindle (axial): 30mm
Setting accuracy of digital read-outs: .05mm
- length of stock: 11.50”
- length with short stock option: 7.87”
- Cutting circle 1st bottom: 5" to 5 13/16"
- Cutting circle vertical spindles: 4" to 7 7/8"
- Cutting circle all other horizontal spindles: 4" to 7 7/8"
- Machine net weight: 11 500 lbs.
- Manual lubrication pump for bed
Receding chip breaker on top heads
-40mm side fences
-4 powered bed rolls
-1 idle roller in bed
-9 upper feed
