SOLD Used Voorwood A125F Shape and Sand Machine with Doucet BY-30-60-T6-30-108G Return Conveyor
This used shape and sand machine manufactured by Voorwood includes a Doucet Return Conveyor.
Technical Specifications for Vorrwood A125F Shape and Sand Machine
(2) 5 HP 6 000 RPM shaping spindles with 1-1/4" spindles
Micropoint tilt (moves up & down and in & out)
Jump feature on first shaping spindle
(2) 3/4 HP variable speed profile sanding heads with 1-1/8" spindles
Equipped with quick change spindles
Infeed guide fence with digital indicator

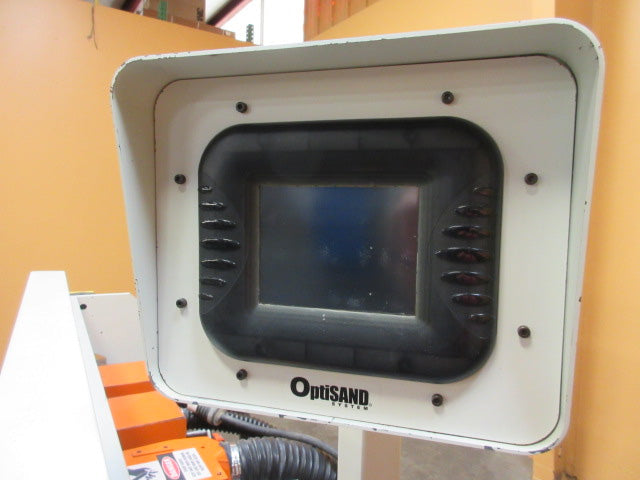

Touch screen control
Digital position indicators
3/4 HP variable speed feed 8 to 25 FPM
2-5/8" wide x 3" rubber feed track pads
Rubber wheel hold down rollers
Minimum material size: 3" x 3"
Minimum thickness: 1/8"
Maximum thickness: 1-1/2"
(1) centralized 6" diameter dust outlet
Dust Collection: Requires 800 CFM minimum
Air requirements: 90 PSIG @ 3 CFM
Electrical requirements: 25 amps @ 480 Volt
Note: Voorwood is 480 Volt ONLY
Note: No tooling included
Machine net weight: 1 490 lbs.
Machine dimensions: 30" W x 97" L x 63" T
Includes Doucet Model BT-30-60-T6-30-108G return conveyor with following features:
30" x 60" receiving conveyor
6" extra transfer
30" x 108" return conveyor
Variable speed feed
Shipping dimensions of return: 78" W x 120" L x 42" T
Overall footprint of both machines: 80" x 180"
