SOLD Used Weeke CNC Flat Table Machining Center - Model Optimat BHP-200
If no preowned woodworking machinery is currently being listed in the category you are searching, call Stan the Woodworking Machinery Man at 770-861-0570 to check availability of incoming inventory, as our used machinery frequently sells before being listed.
Contact: Stan, the Woodworking Machinery Man
Phone: 678-642-9722
Email: stan@WoodworkingMachineryMan.com

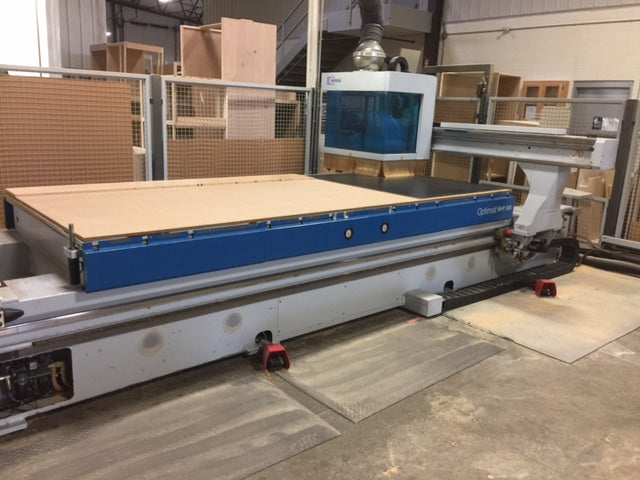

This used cnc flat table machining center manufactured by Weeke features a working capacity of 5' wide x 12' in length. Additonal technical specifications include...

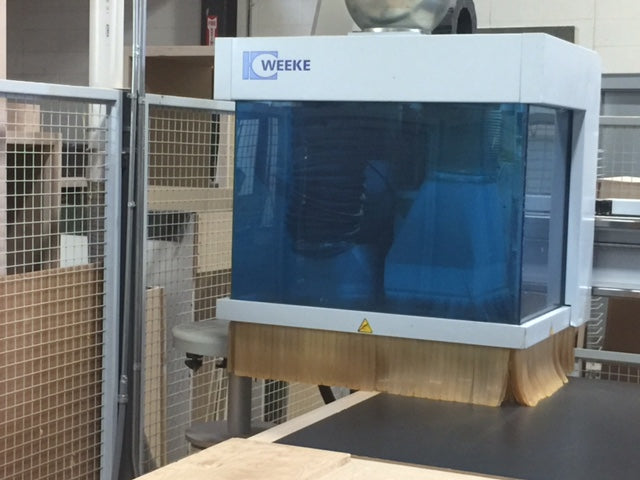

- a 12HP air cooled vertical router unit wtih an HSK63 tool holding system
-
an eight (8) position automatic (ATC) tool changer.
This router is furnished with a frequency inverter and is programmable for RH or LH rotation
- with a 2.7kW Vertical Boring Head iwth ten
-
(10) psindles (5 aligned in the X axis and 5 in the Y)
- Spindle rpm is programmable between 1 500 and 7 500
- a 20HP Traviani vacuum pump on the 5' x 12' matrix vacuum table
- eight (8) pop-up part positioning pins

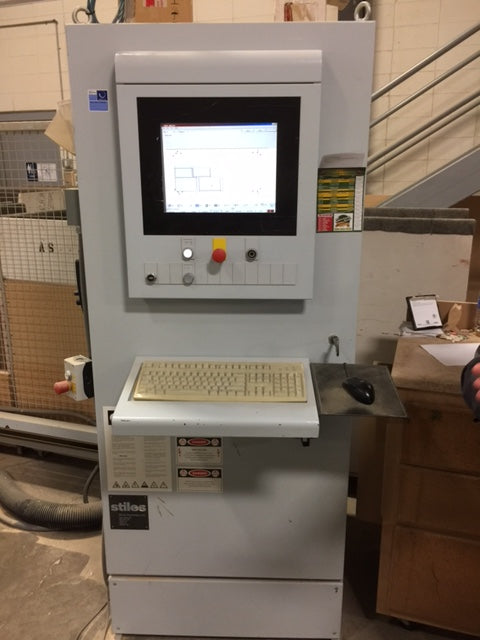

- Weeke MCC Control system
- electrical controls wired for 3 phase 60Hz 230/460V operation
